Practicum Drawings
Detailed architectural floor plan of a building with various rooms labeled, including meeting areas, offices, storage, elevators, and common spaces, with measurements and symbols.

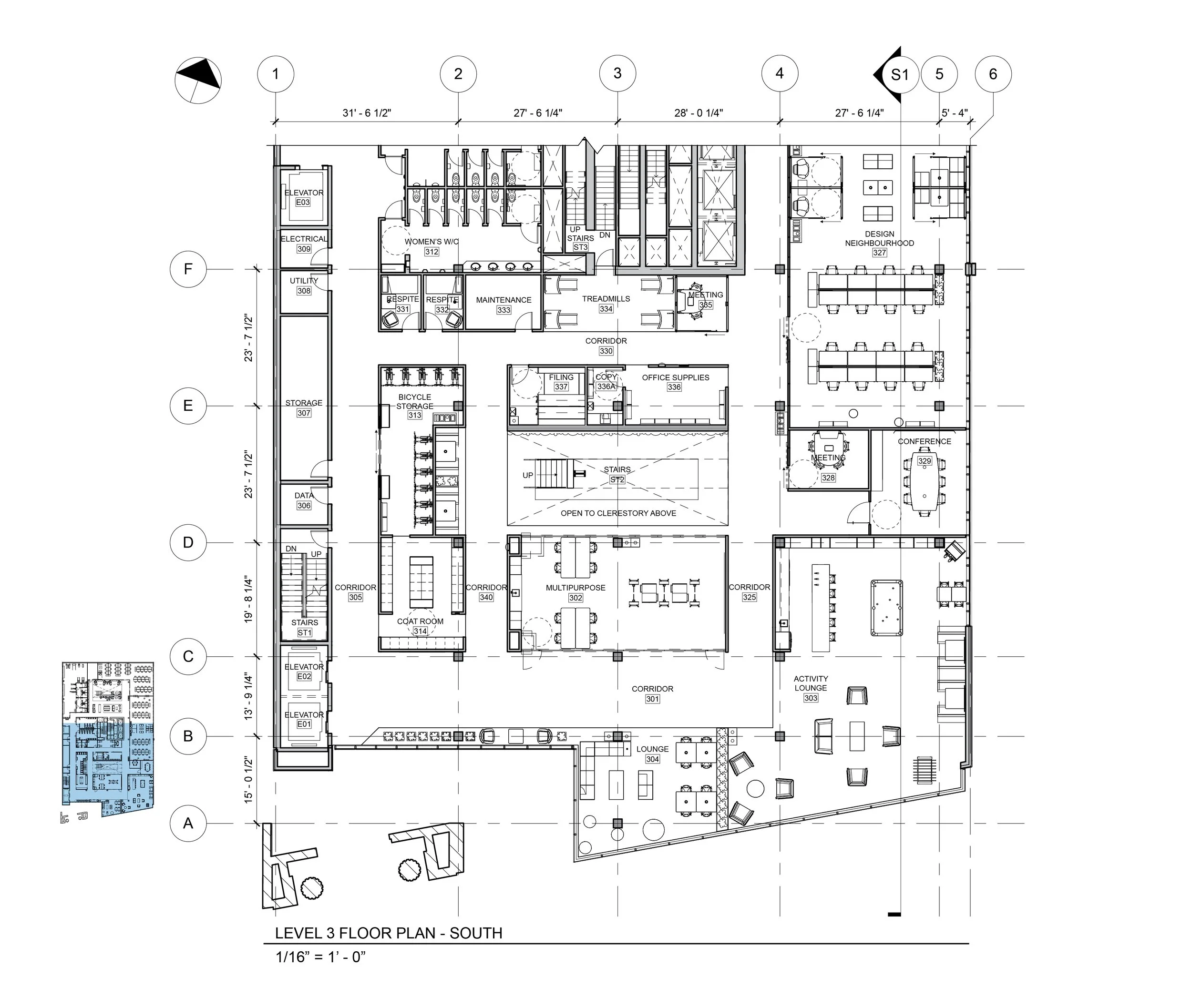

Floor plan of a building with various rooms including fitness center, showers, conference rooms, lounge, and office areas, with measurements and labels.
Detailed architectural floor plan of a building, including various rooms labeled for specific functions such as kitchen, office, conference room, work lounge, and corridors, with measurements and design details.
Detailed floor plan of a building with various rooms including meeting rooms, workspaces, a webinar area, and corridors, with measurements and labels.
Detailed floor plan of a building with labeled rooms and designated areas for offices, conference rooms, lounge, and other facilities.
Detailed architectural floor plan with various rooms labeled, including classrooms, corridors, a break area, an elevator, and other office or institutional spaces.

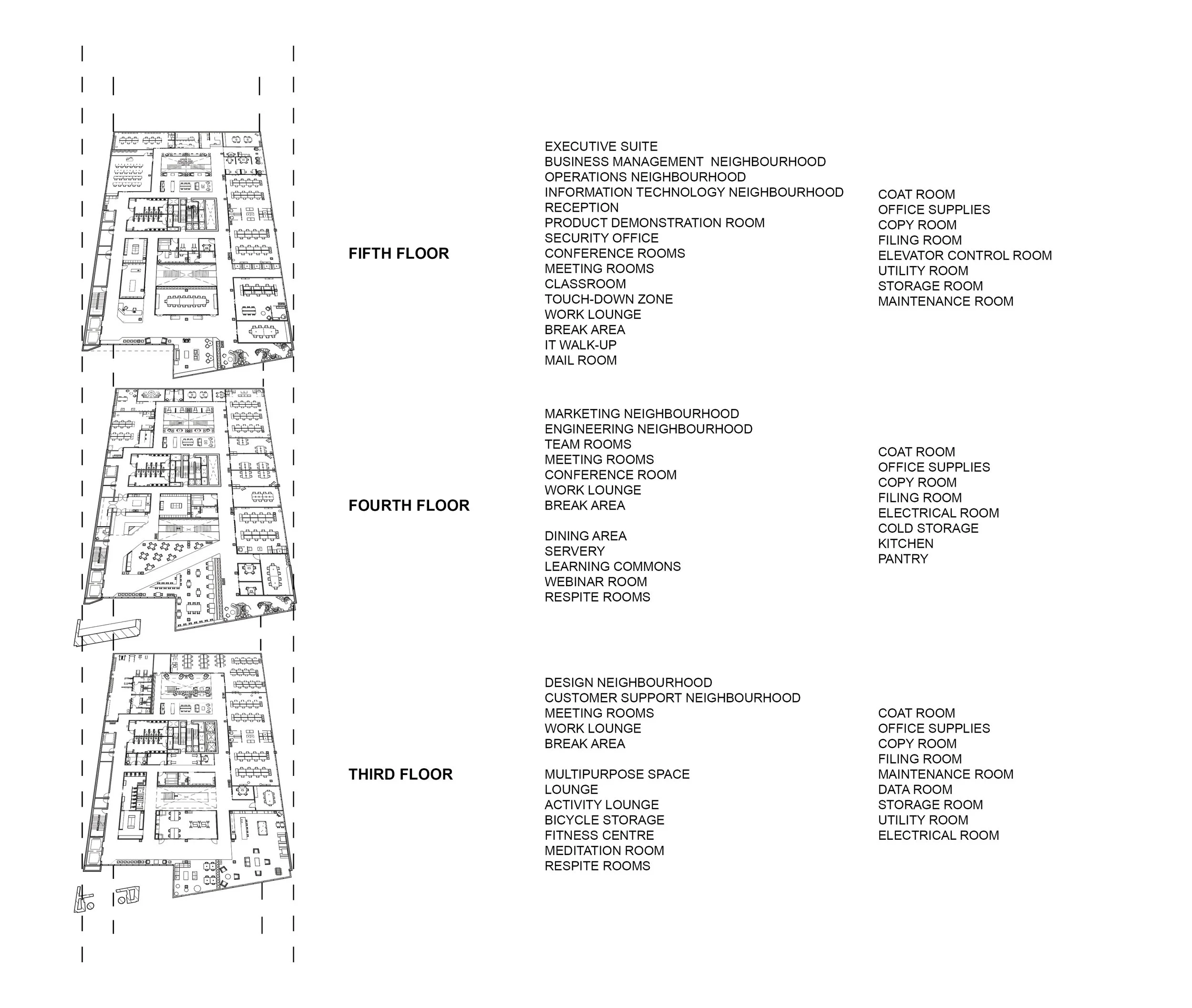

Detailed floor plan of multi-story building showing different room layouts and labels for each floor.
Architectural floor plan of a building, showing detailed layout including rooms, stairs, elevators, corridors, and designated areas for activities, with measurements and labels.

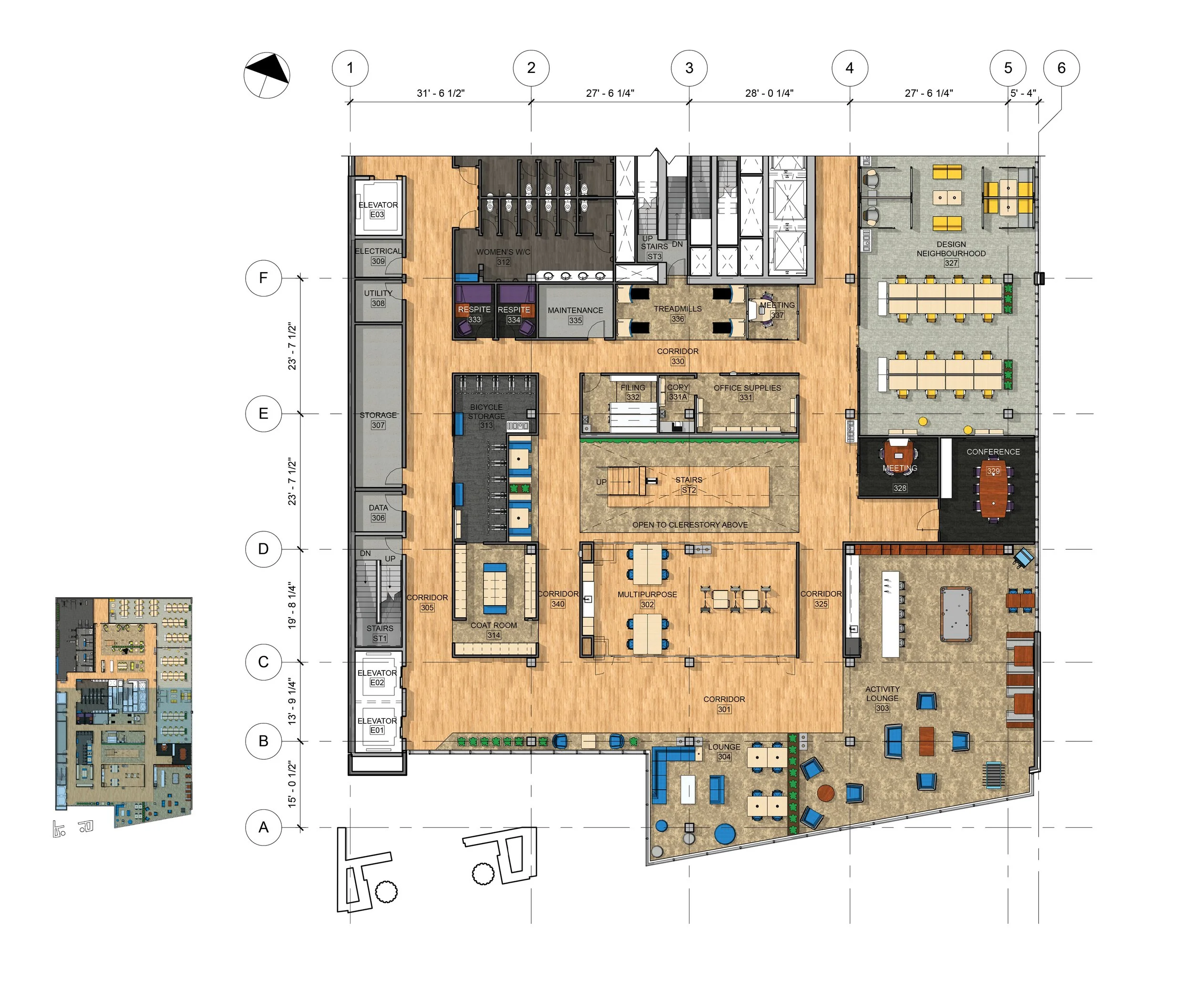

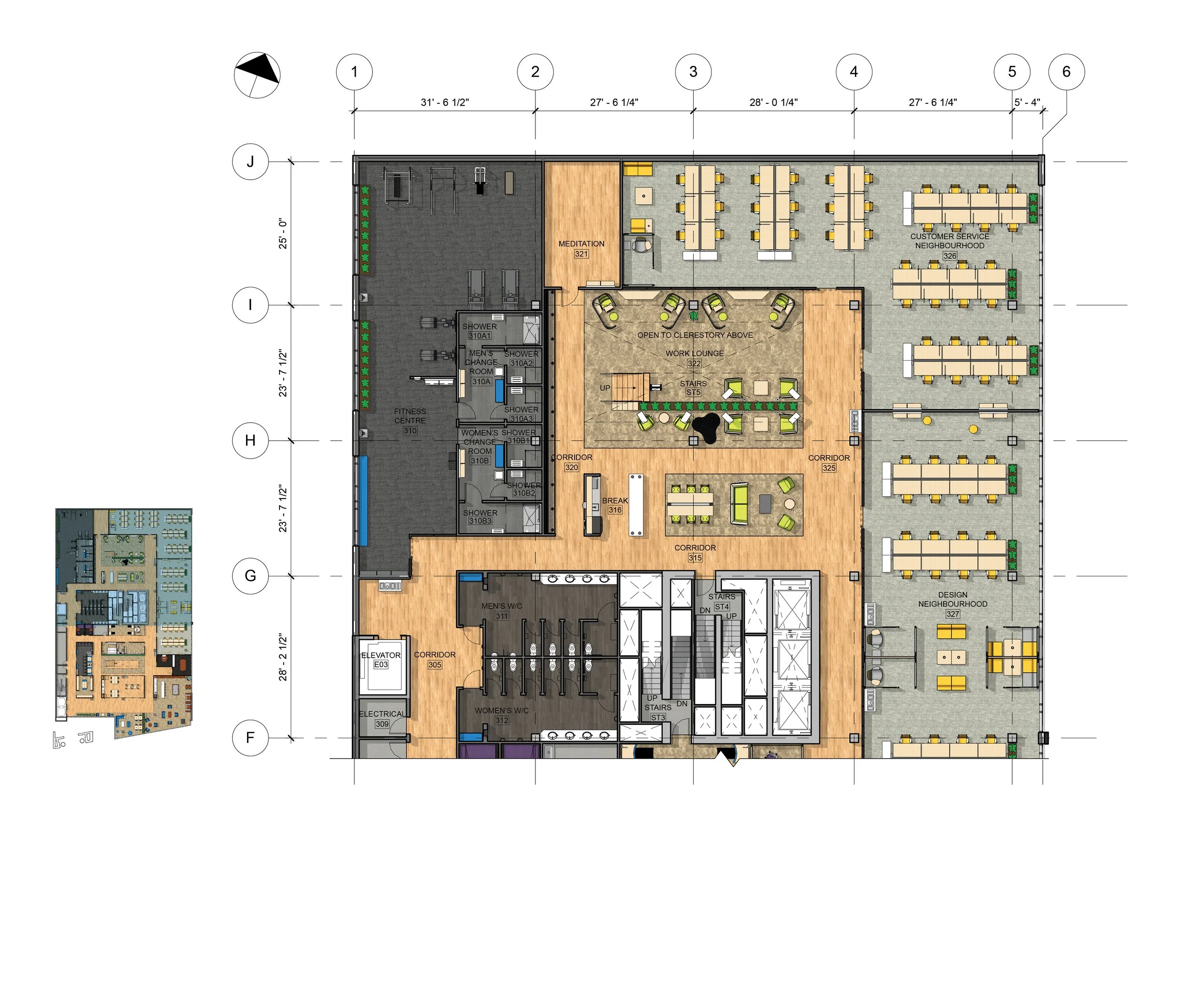

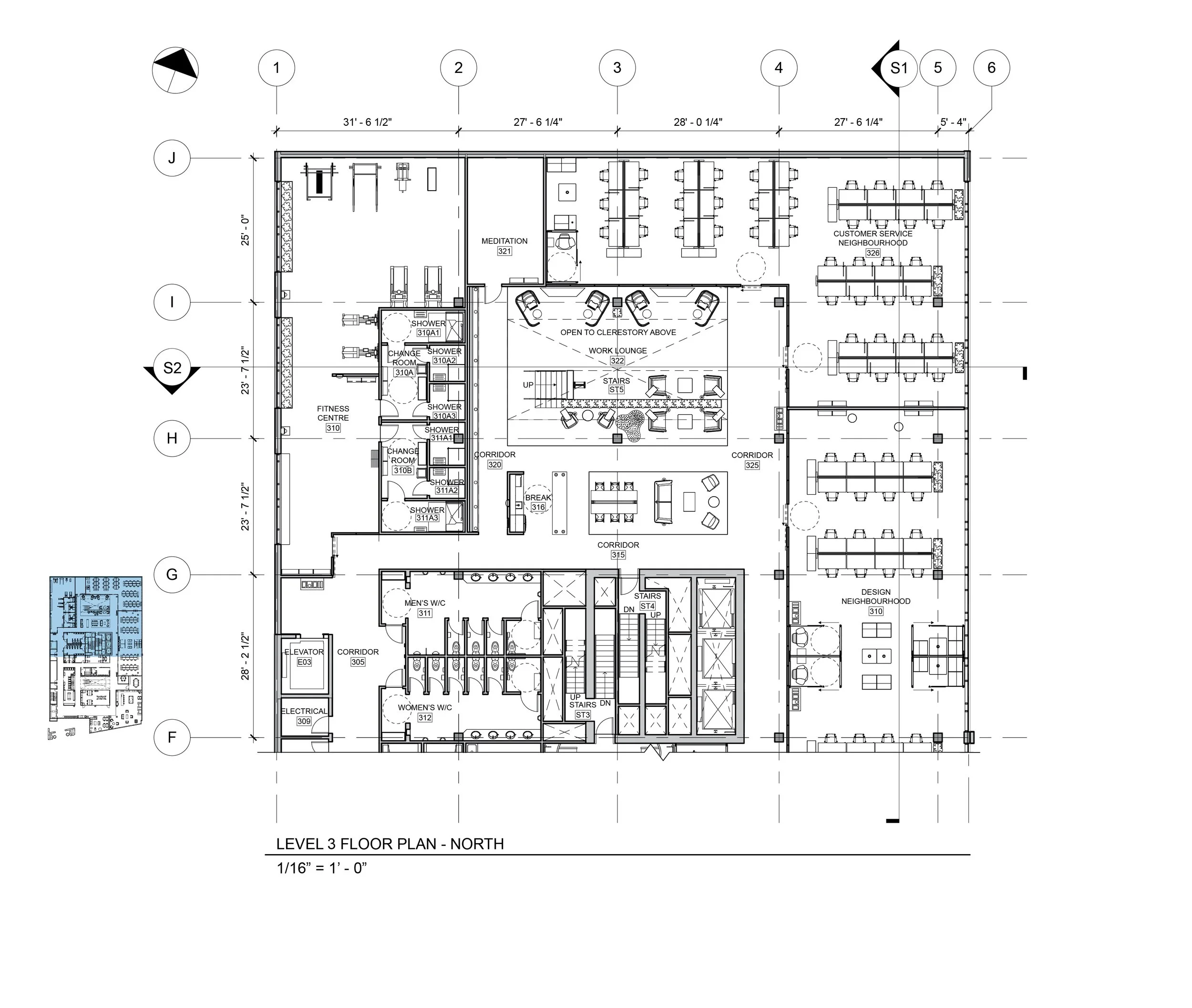

Architectural floor plan for a building's level 3, showing rooms, corridors, restrooms, and furniture layouts, with measurements and labels for various areas.

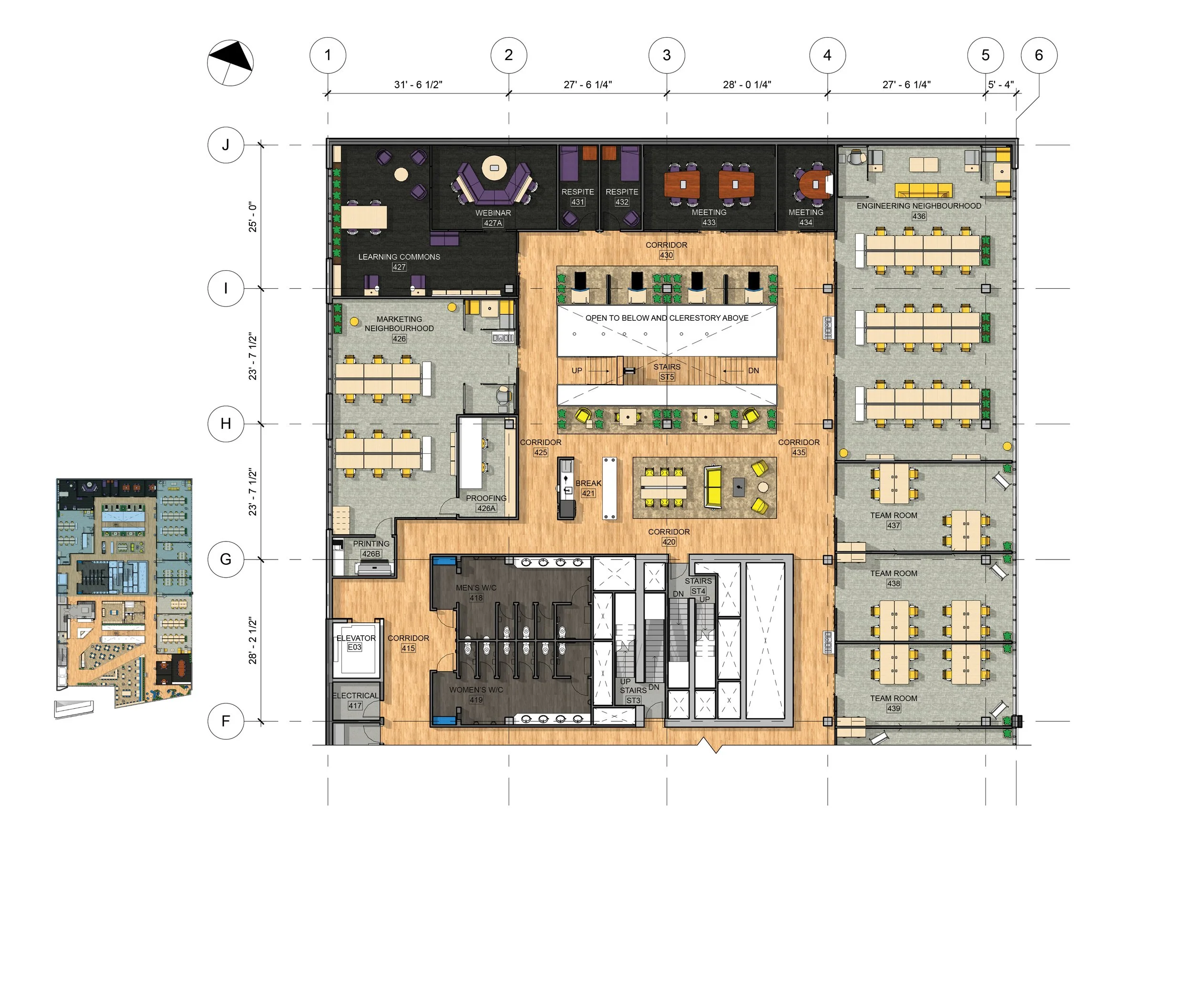

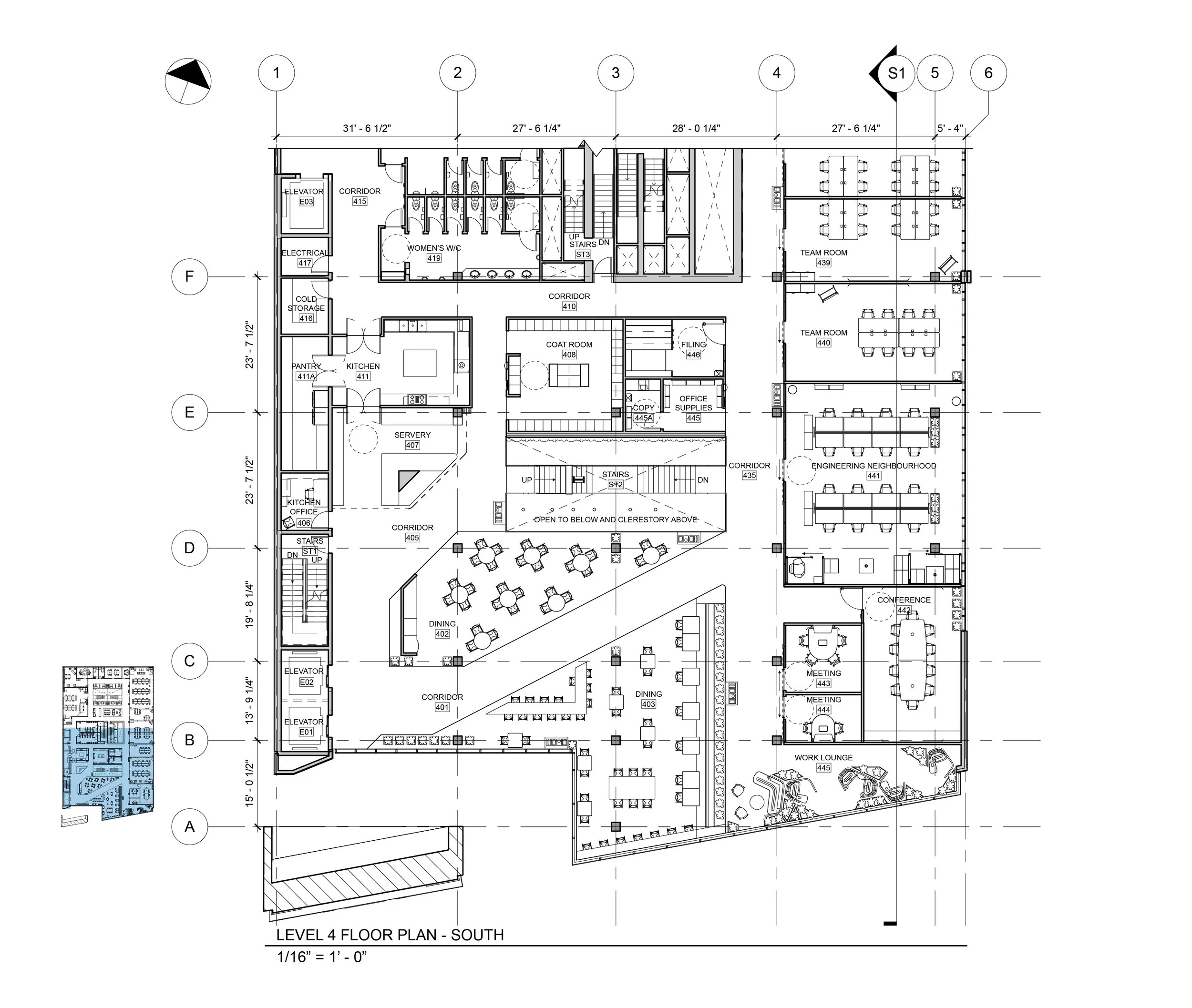

Architectural blueprint of a building's fourth floor, showing rooms such as a kitchen, offices, conference rooms, work lounge, and corridors, with measurements and labels.

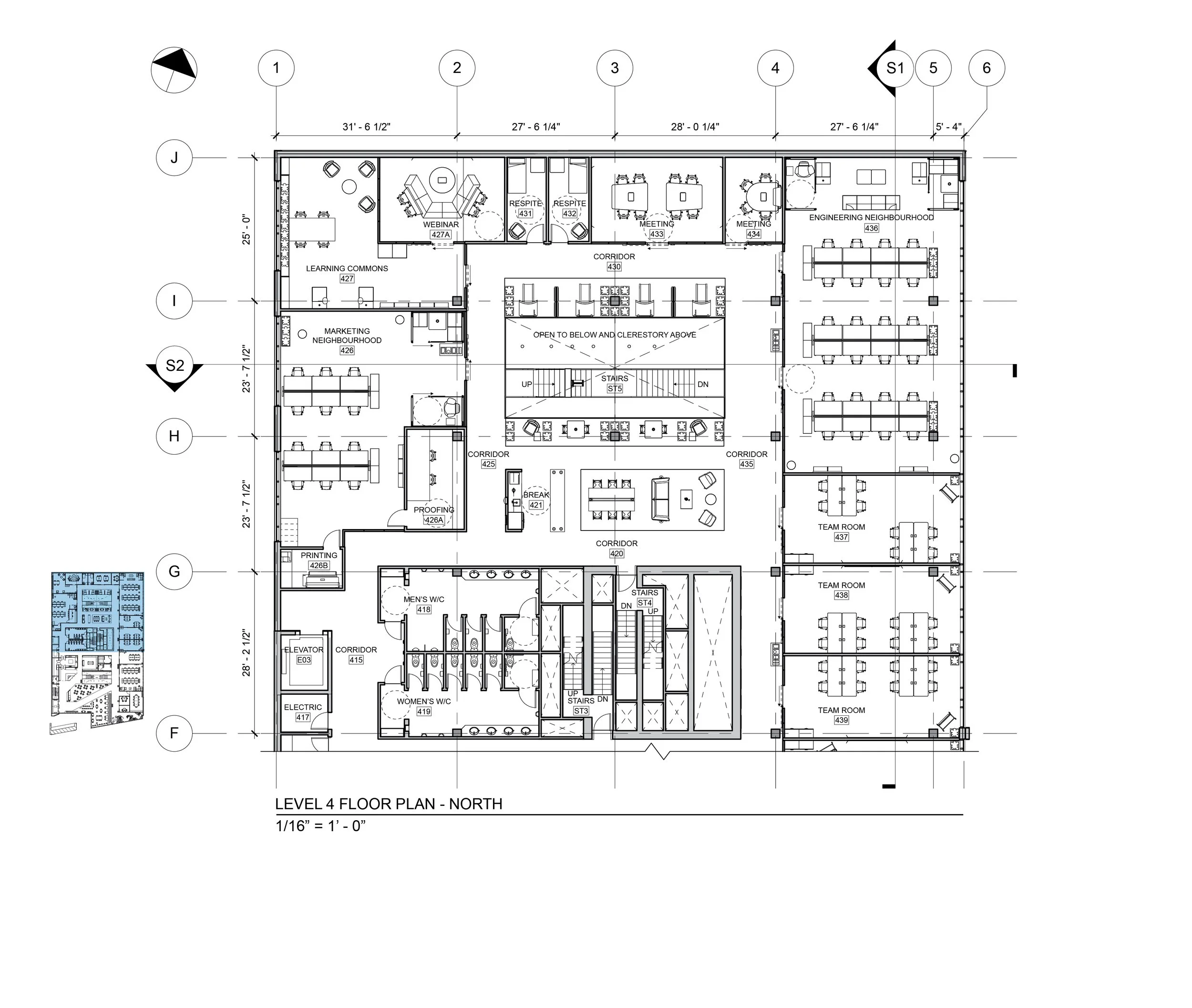

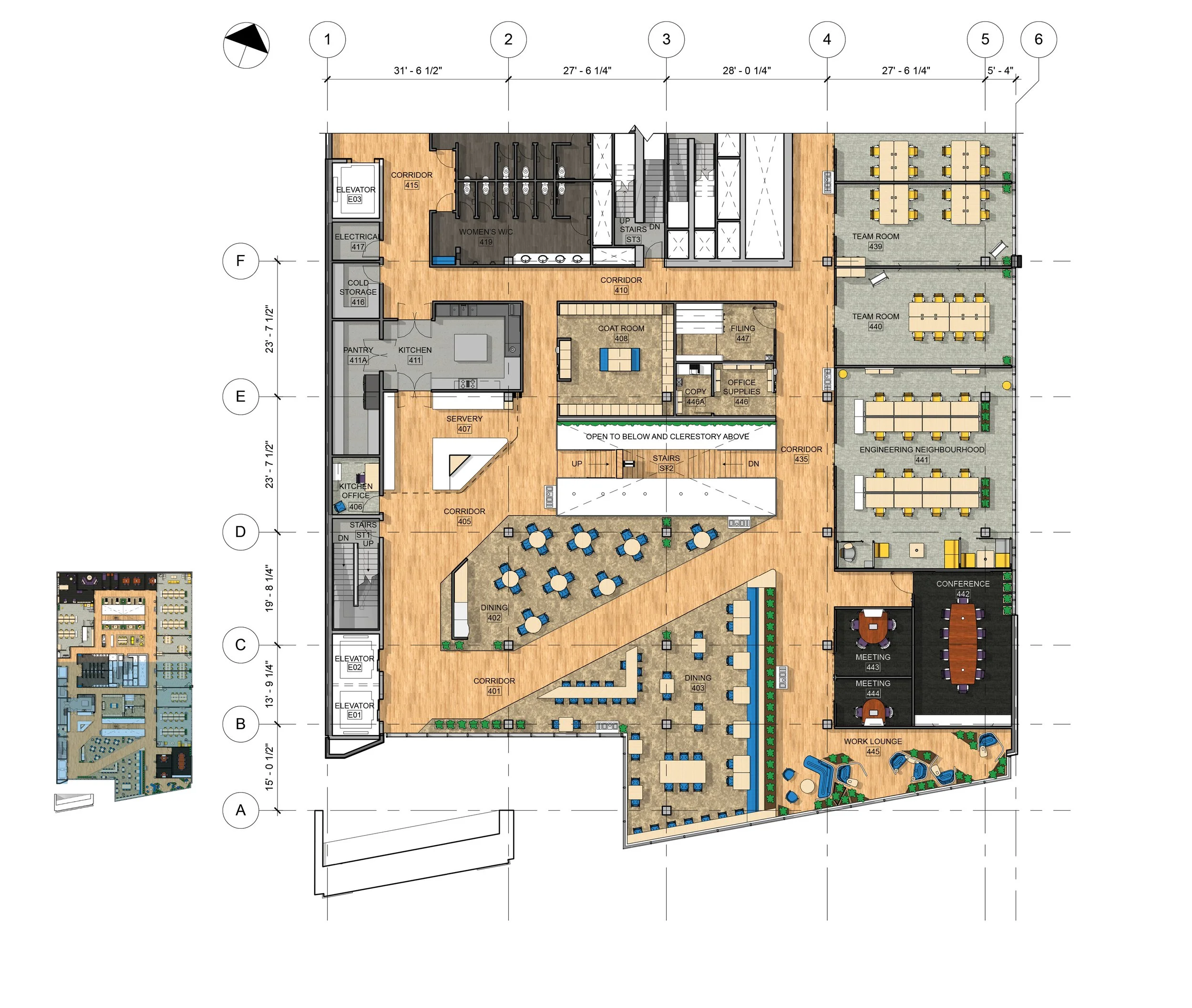

Architectural floor plan of the fourth level of a building, showing rooms such as learning commons, marketing neighborhood, and team rooms, with staircases, corridors, and detailed measurements.

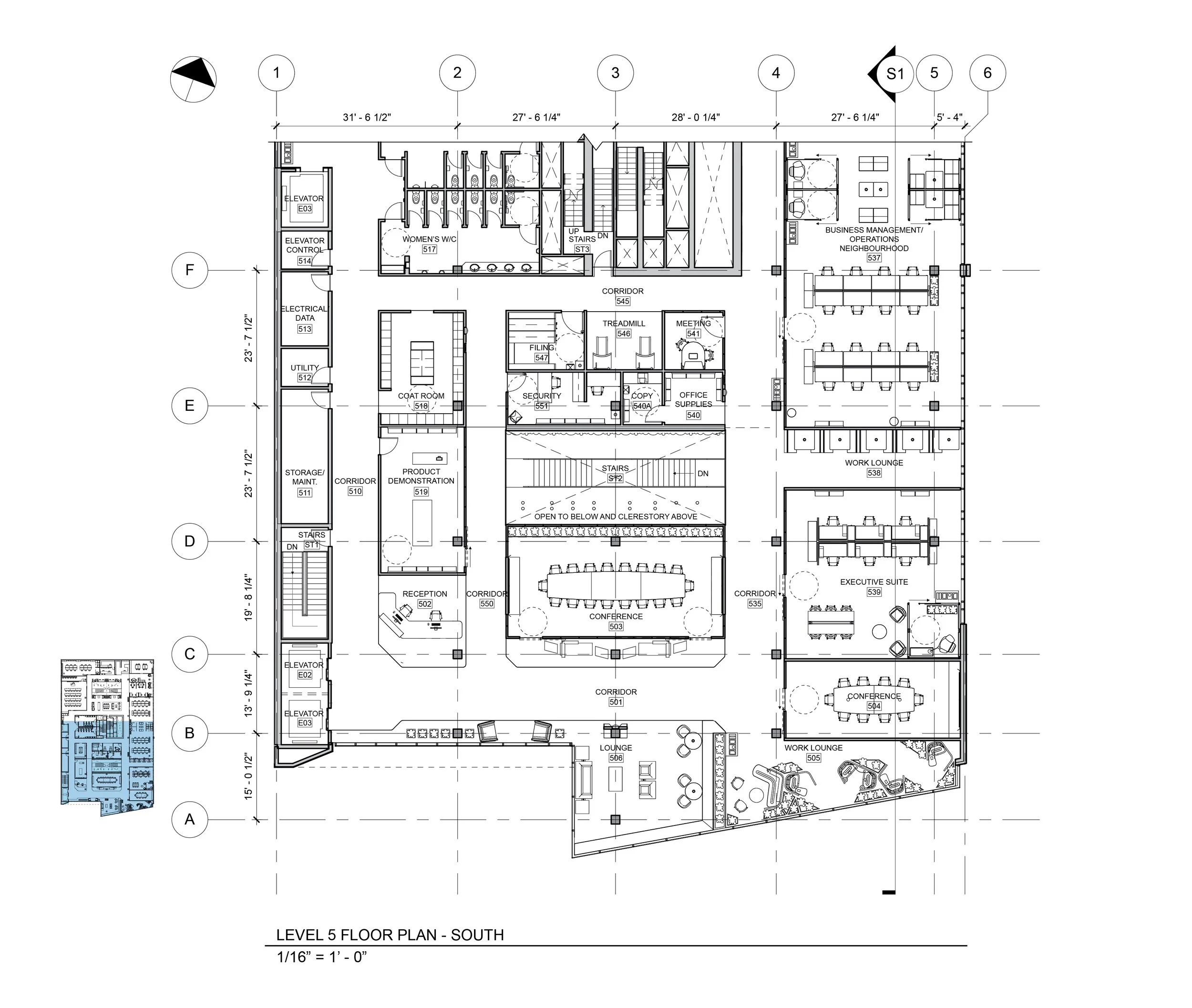

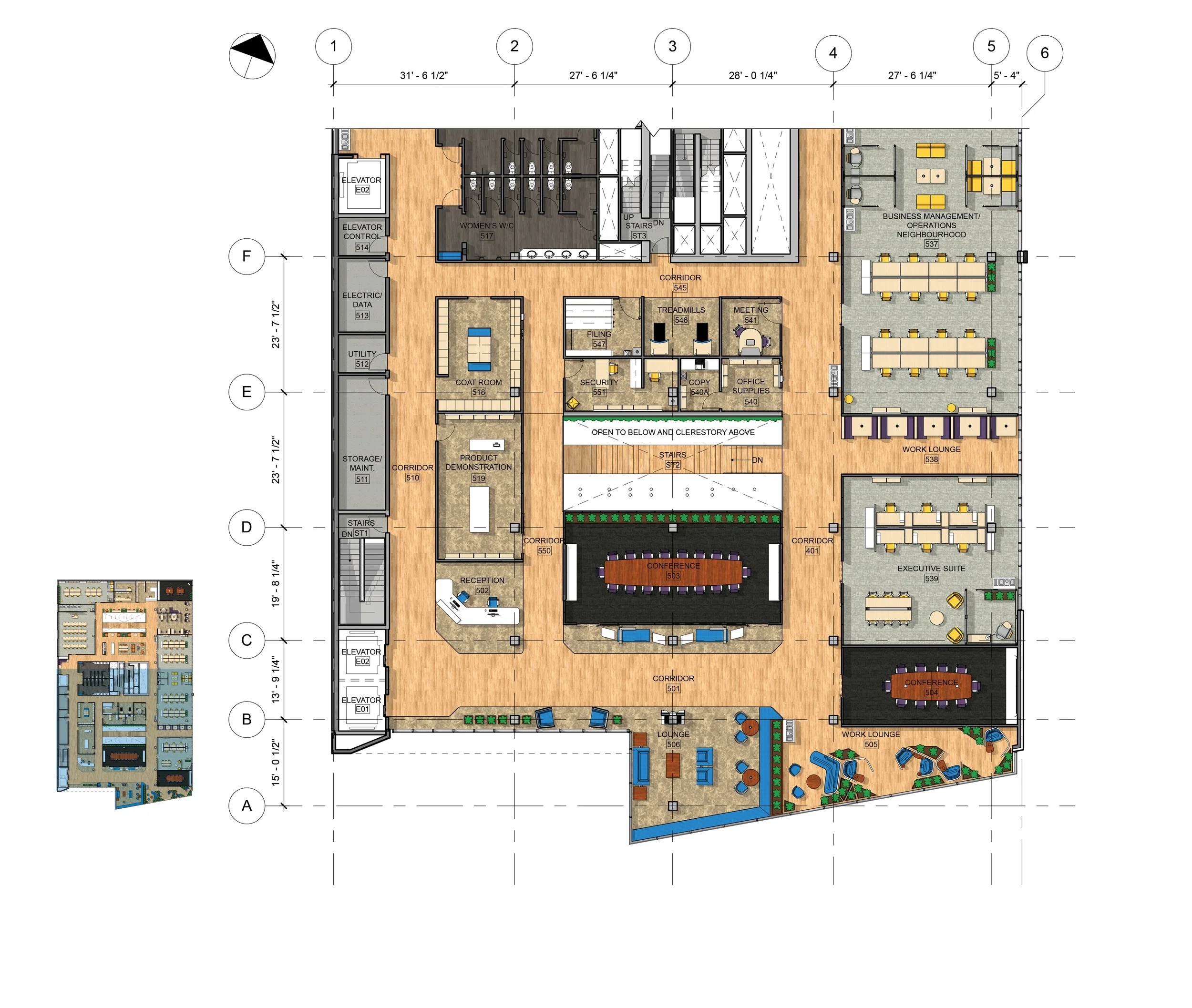

Floor plan of a building labeled Level 5 South, showing rooms and areas with labels such as reception, conference, office supplies, workspace lounge, storage, electrical data, and elevators on the left side. The plan includes dimensions and a small key and north arrow in the corner.
Detailed architectural floor plan of the fifth level of a building, showing various rooms, corridors, elevators, staircases, and designated areas for meetings, storage, and offices.
Architectural floor plan of a building's third level ceiling layout, showing various rooms, lighting fixtures, and ceiling details.

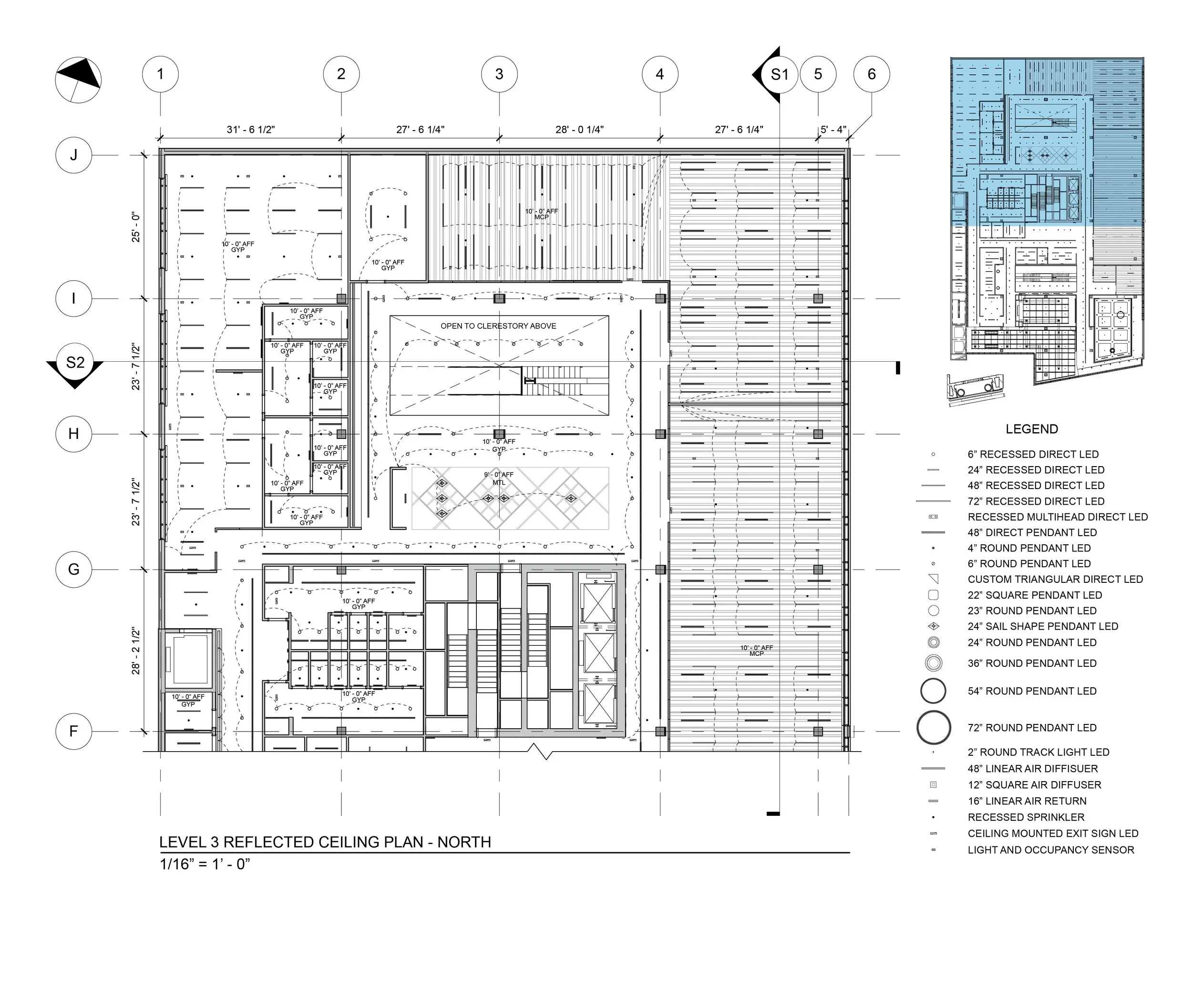

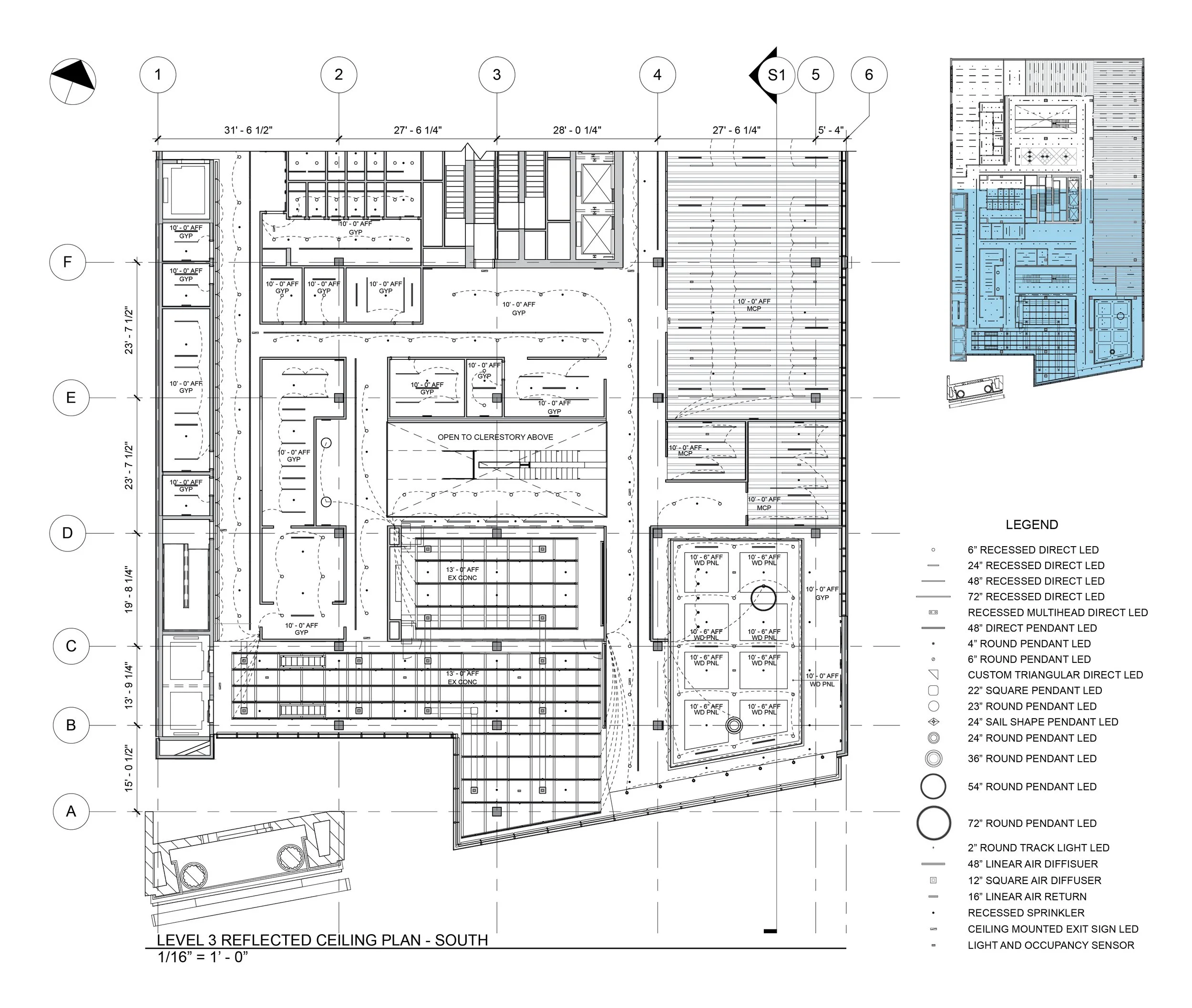

Architectural blueprint of a building's level 3 reflected ceiling plan with detailed measurements, symbols, and legends for lighting and ceiling features.
Architectural floor plan of a building detailed with measurements, room layouts, and lighting specifications, titled 'Level 4 Reflected Ceiling Plan - South.'

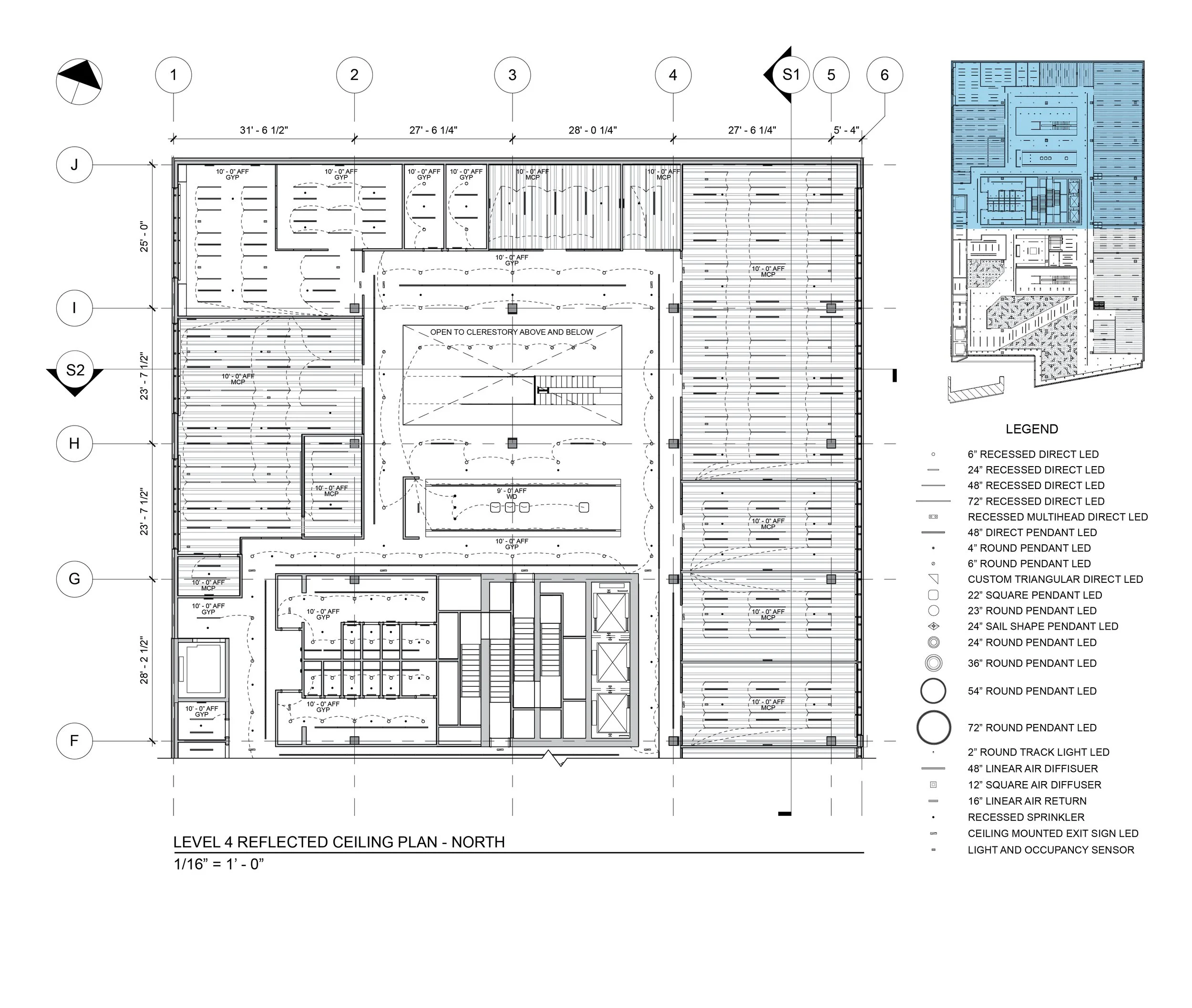

Architectural blueprint of a ceiling plan labeled 'Level 4 reflected ceiling plan - North,' showing various lighting fixtures, sensors, and ceiling details with measurements and a legend for symbols.

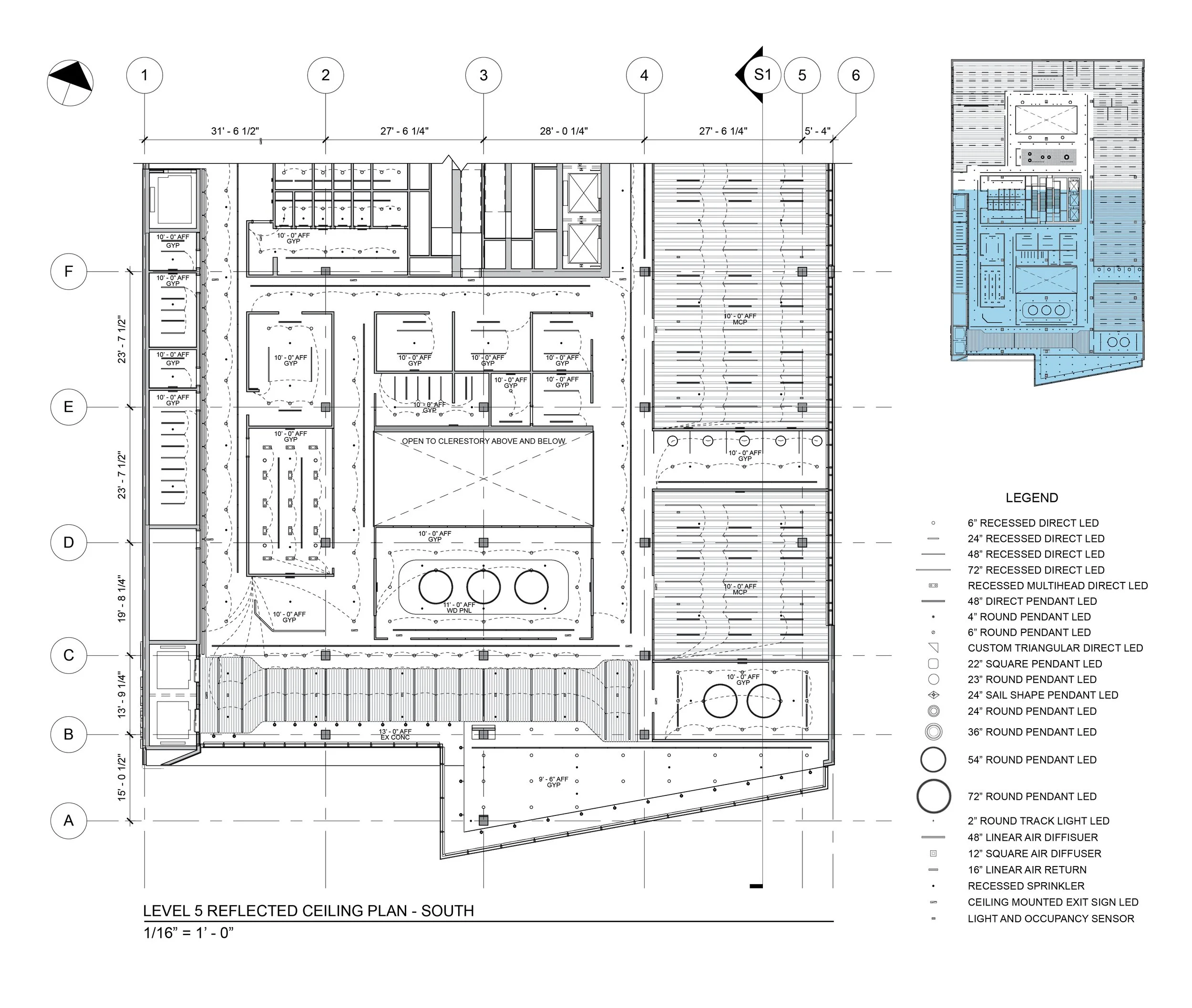

Architectural blueprint of a building with detailed ceiling plan, including lighting fixtures, sensors, and design elements, oriented south.

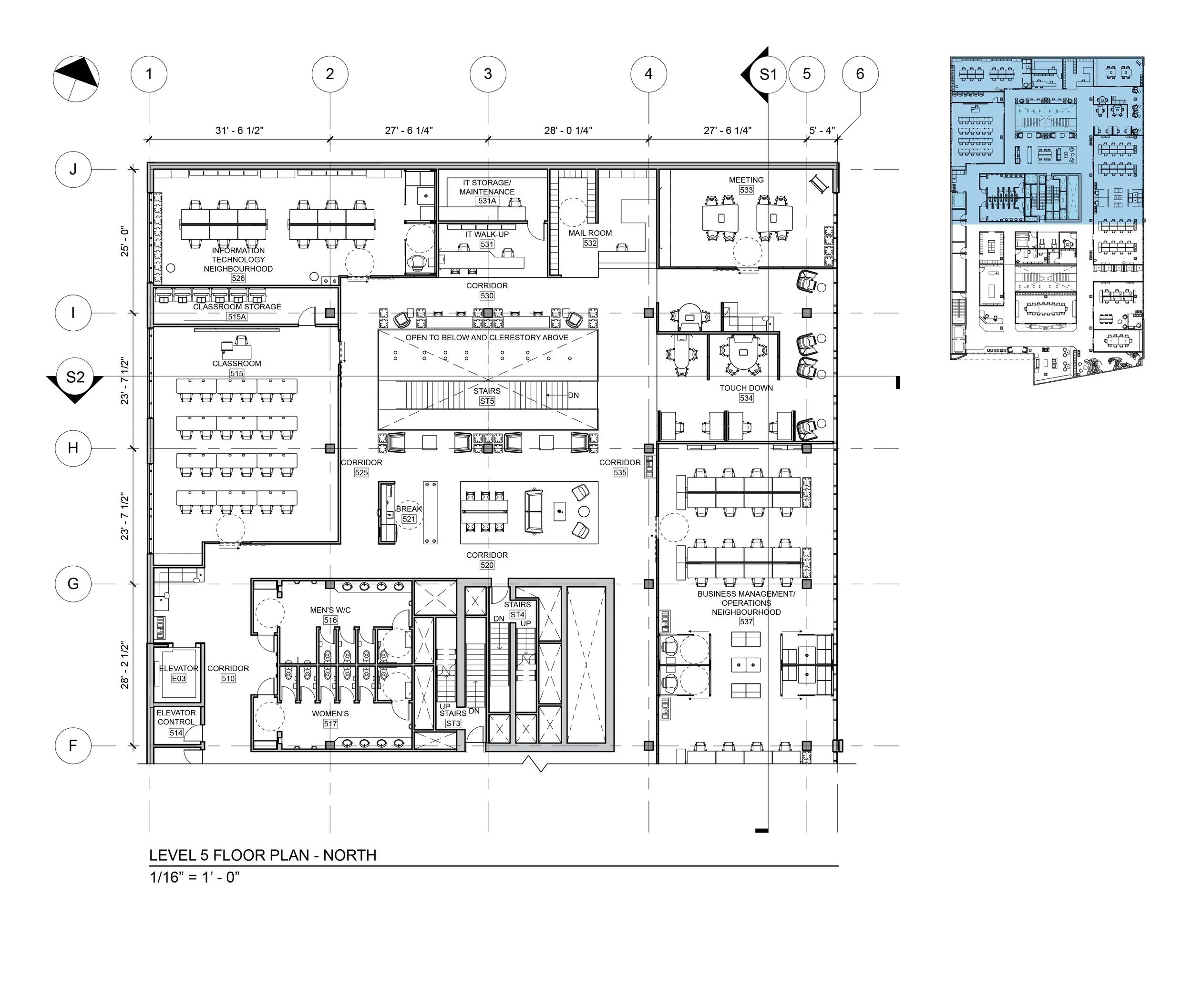

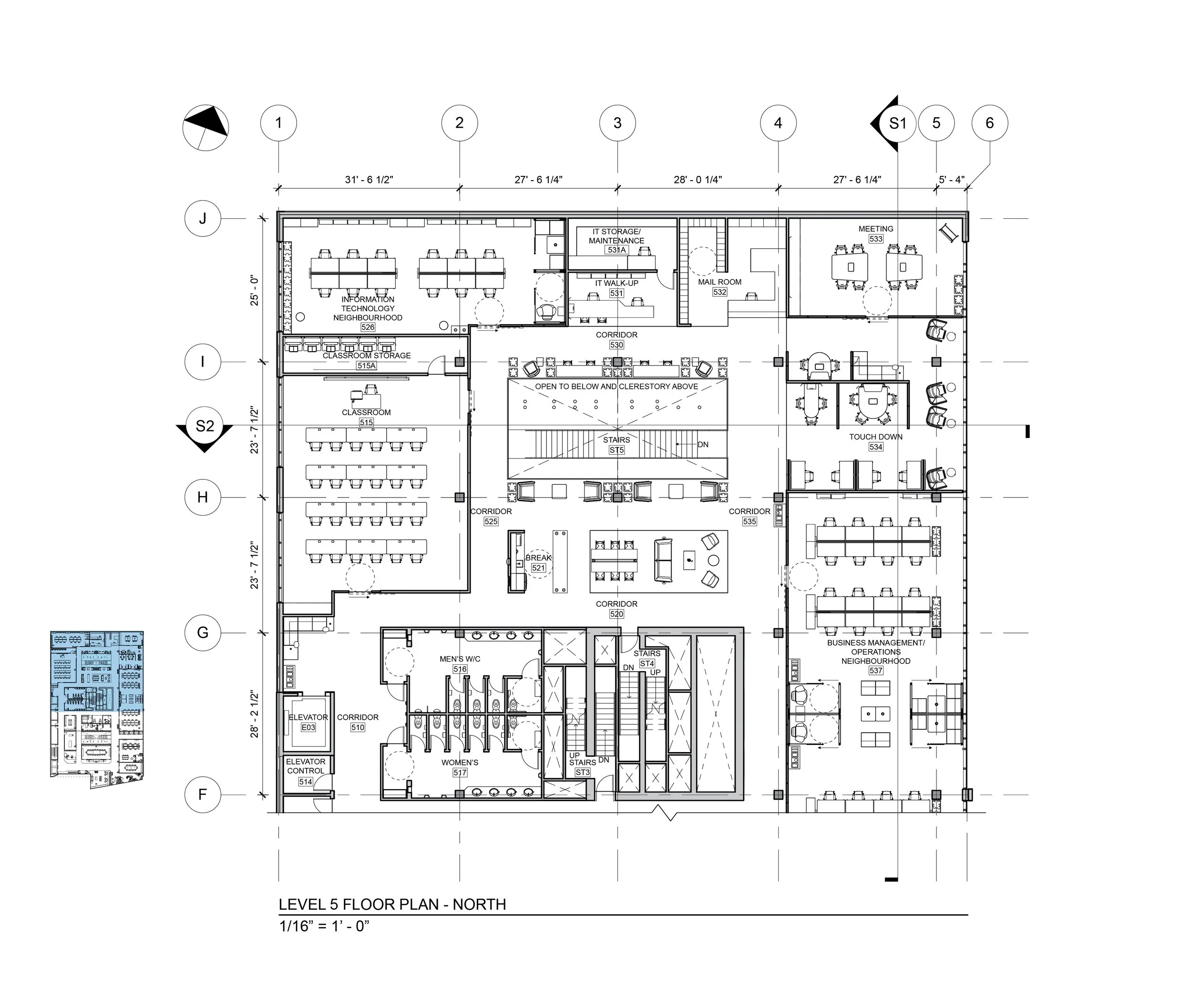

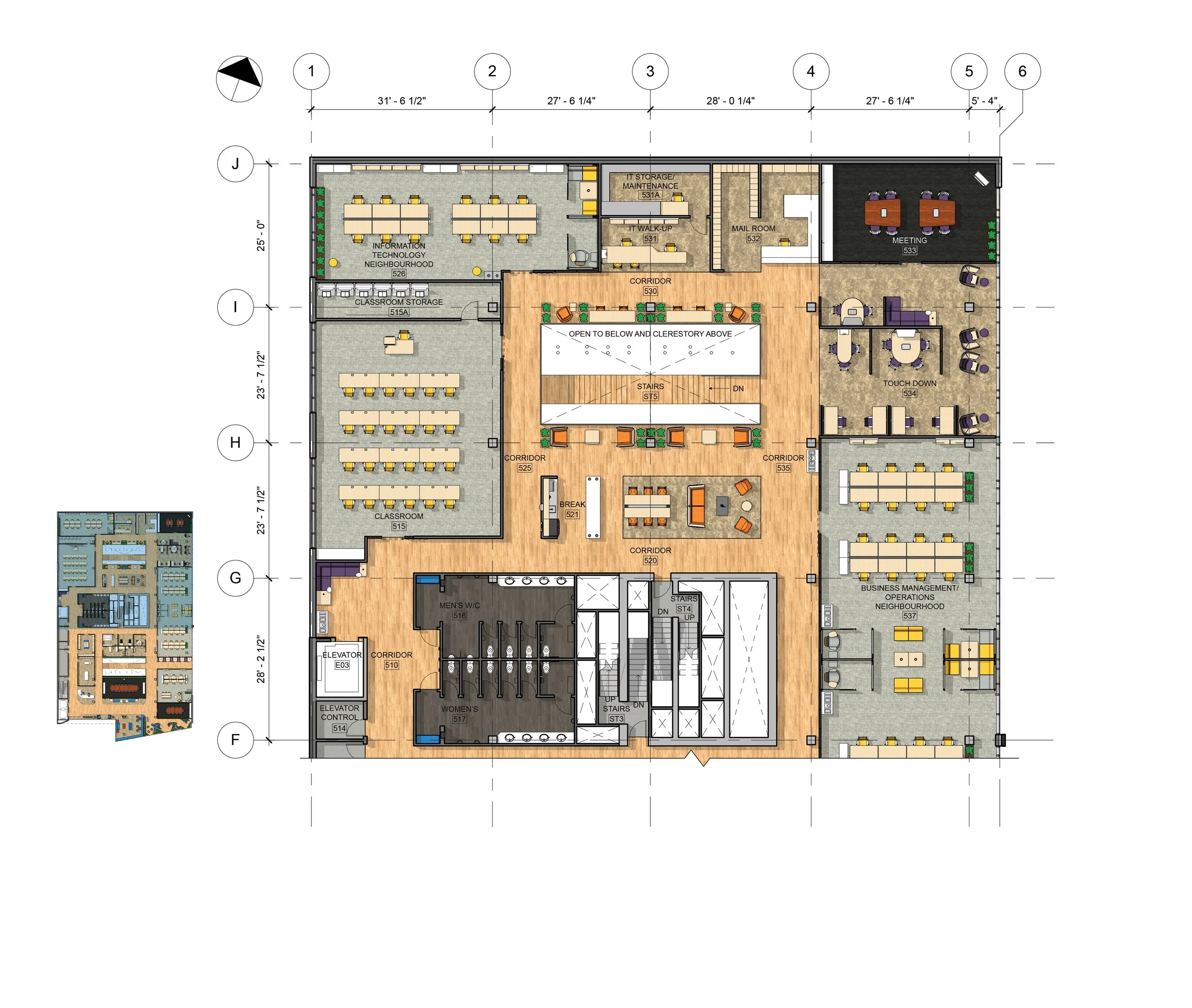

Architectural floor plan of level 5, North building, showing various rooms including classrooms, storage, meeting rooms, and corridors.

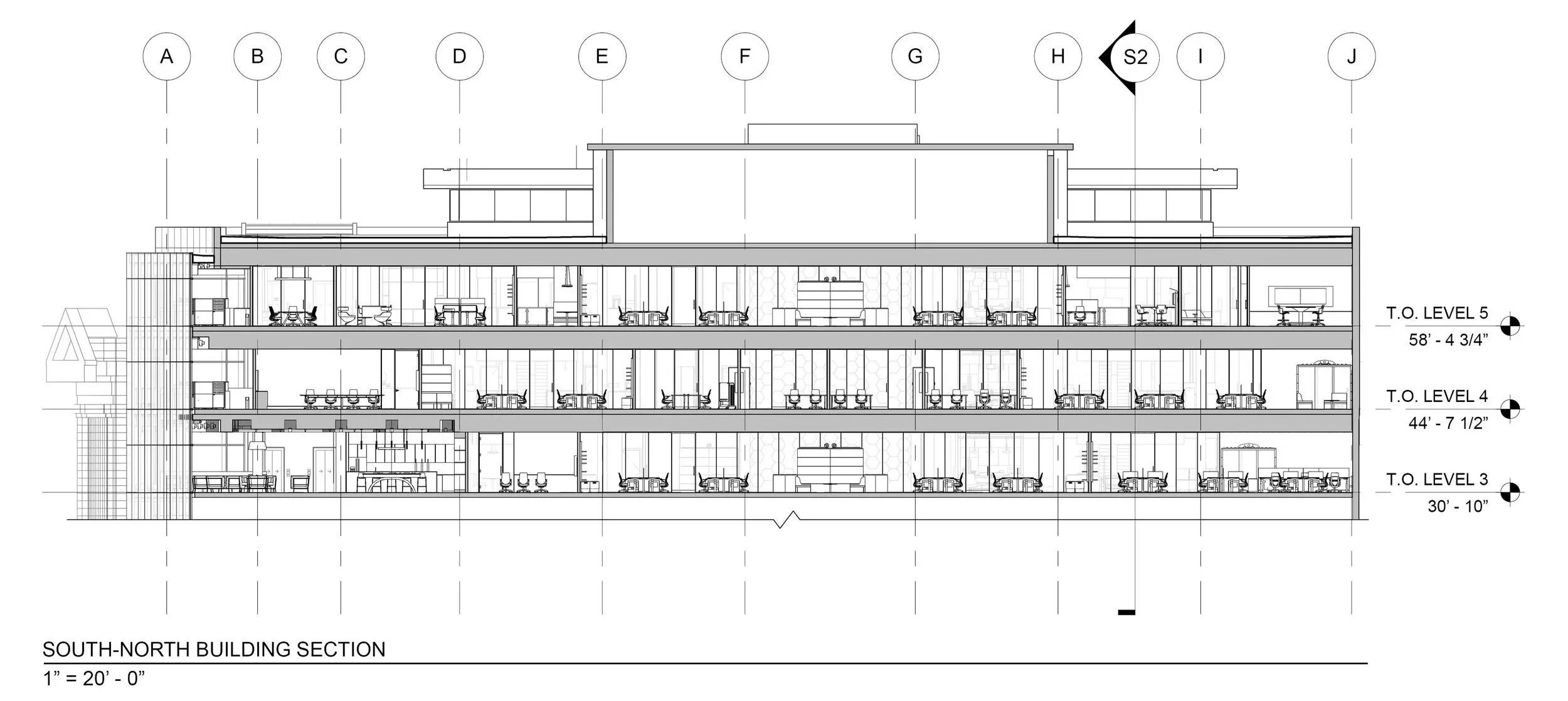

Architectural elevation drawing of the south-north section of a multi-story office building, showing several floors with office furniture, desks, and conference rooms, along with floor and ceiling heights.

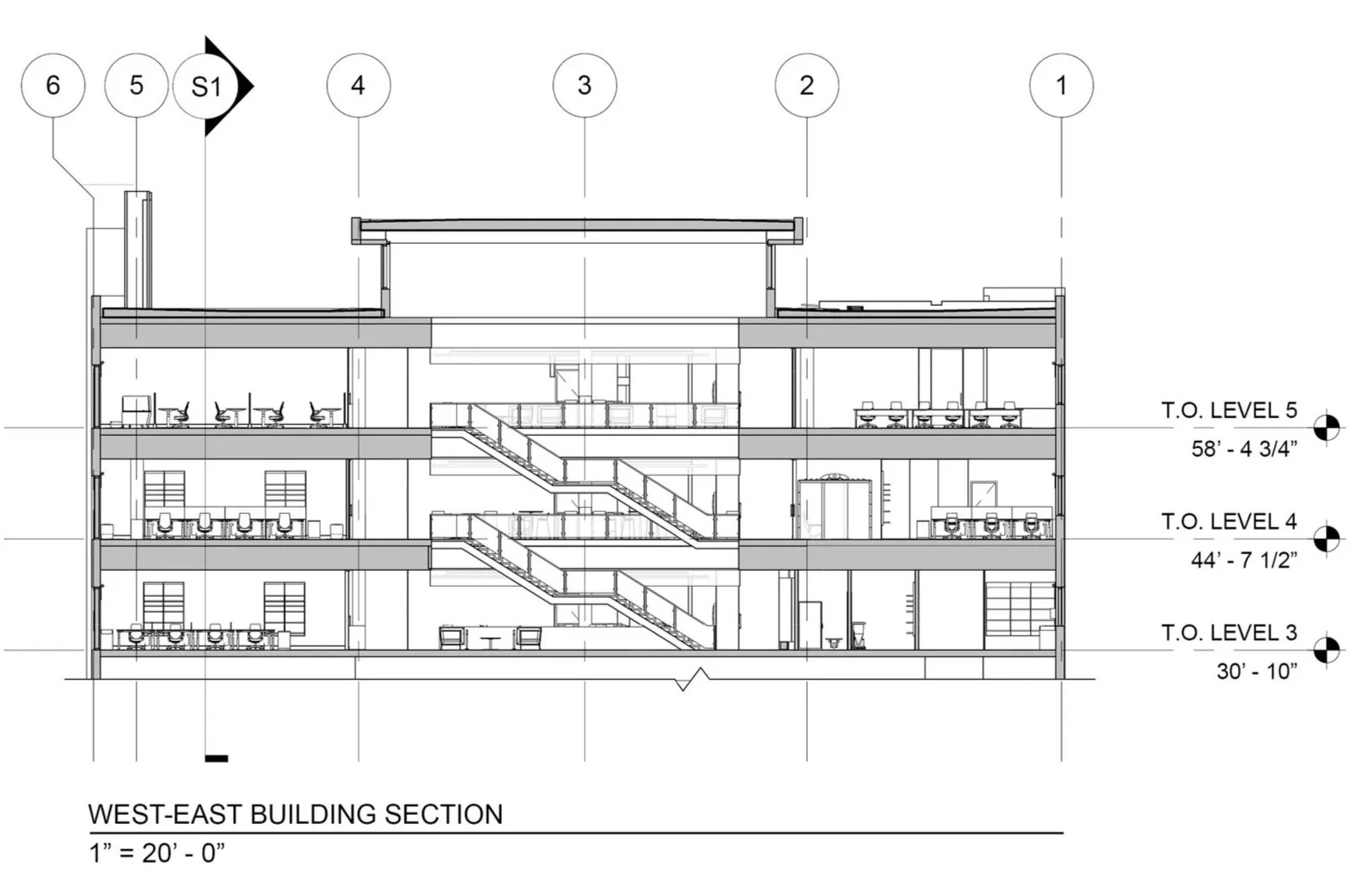

Architectural drawing of a multi-story building labeled as a west-east section. It shows four levels with details of interior layouts and staircases, including office spaces and common areas. The building's heights are marked at 30' 10" for the third level, 44' 7 1/2" for the fourth, and 58' 4 3/4" for the fifth.

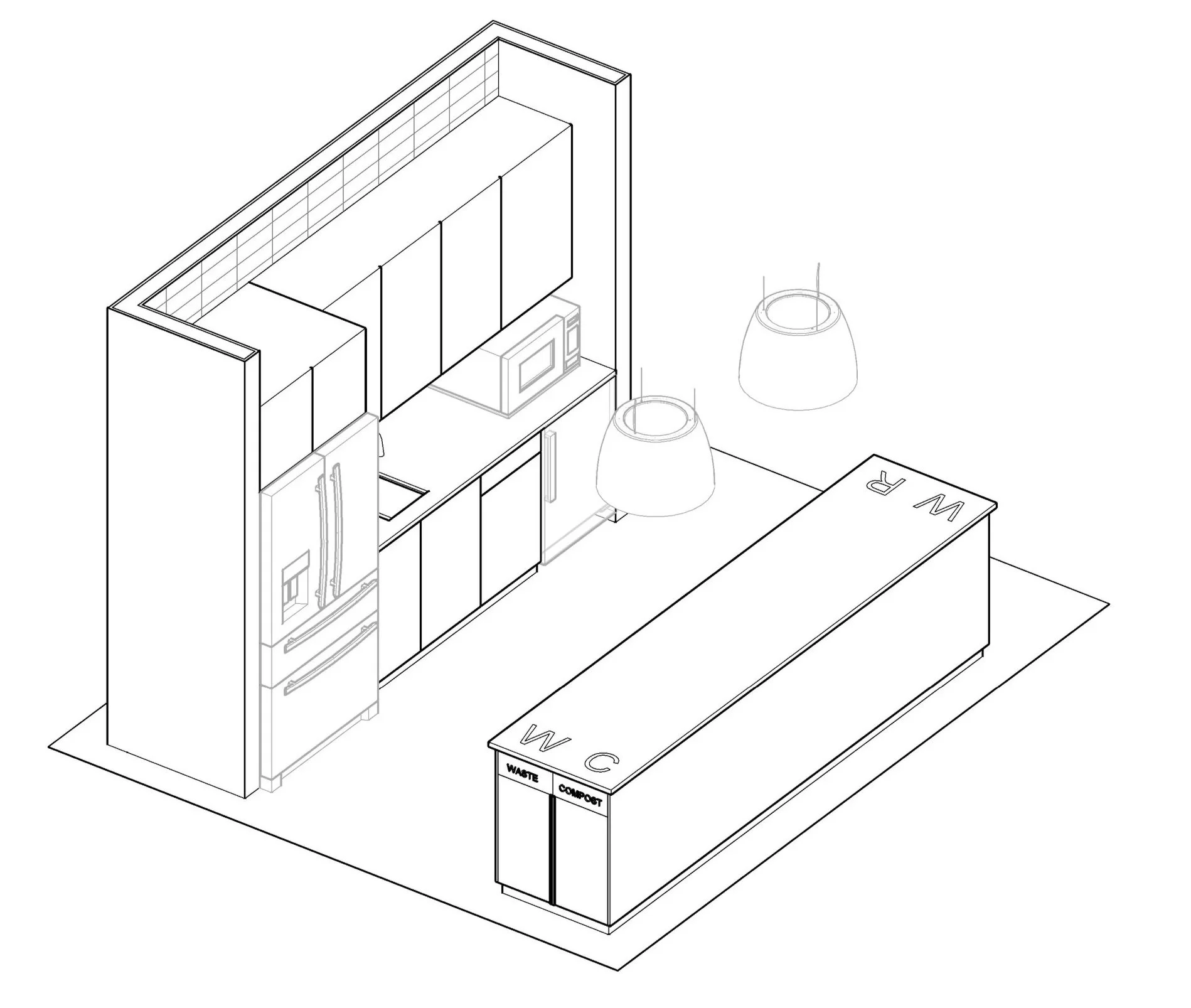

Line drawing of a commercial kitchen layout with a refrigerator, microwave, and counter space labeled for waste, compost, and recycling.

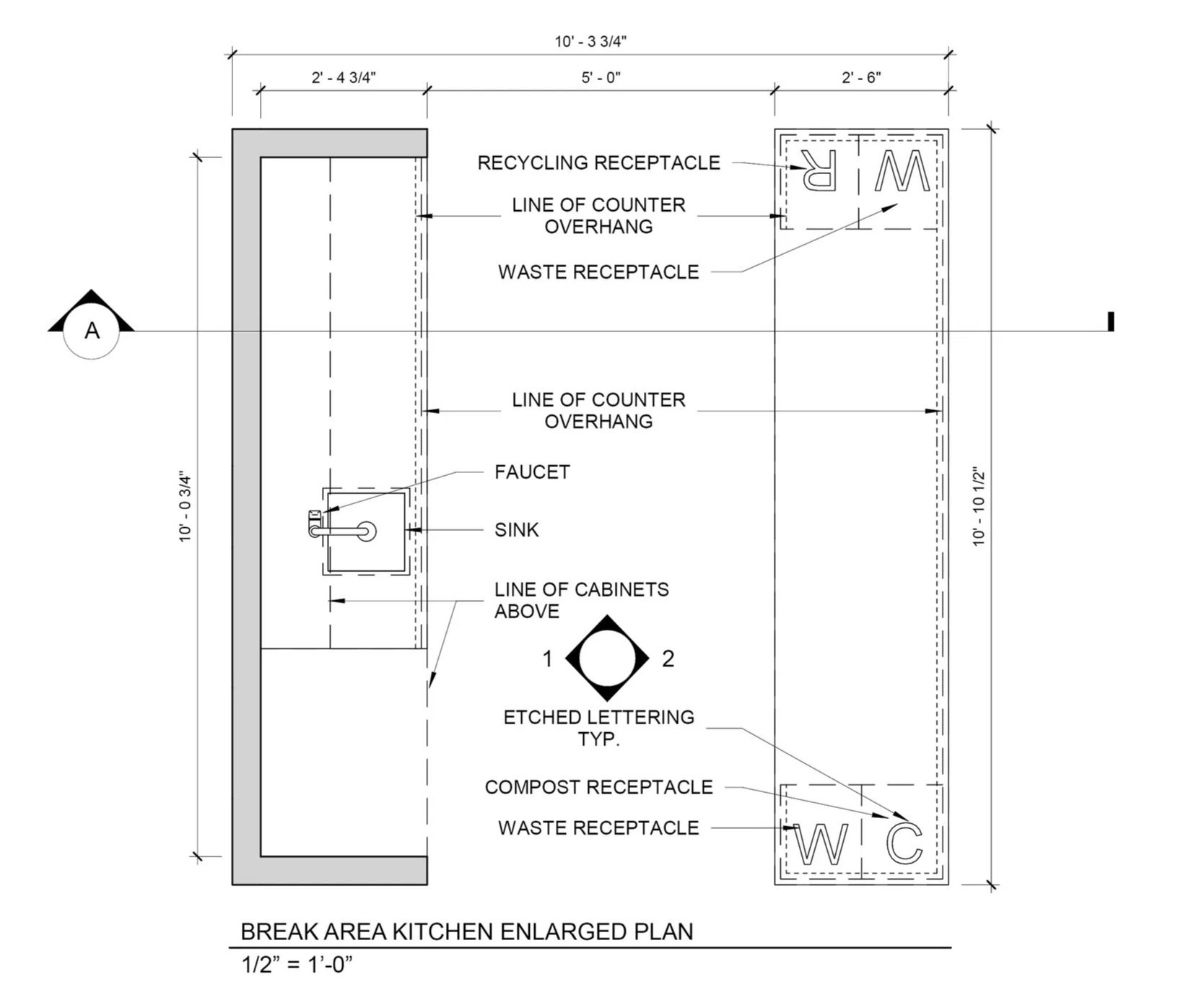

Kitchen plan with dimensions, including a sink, faucet, cabinets, and designated areas for recycling, waste, and compost receptacles. Labeled sections for laundry with 'W' and 'C' symbols.

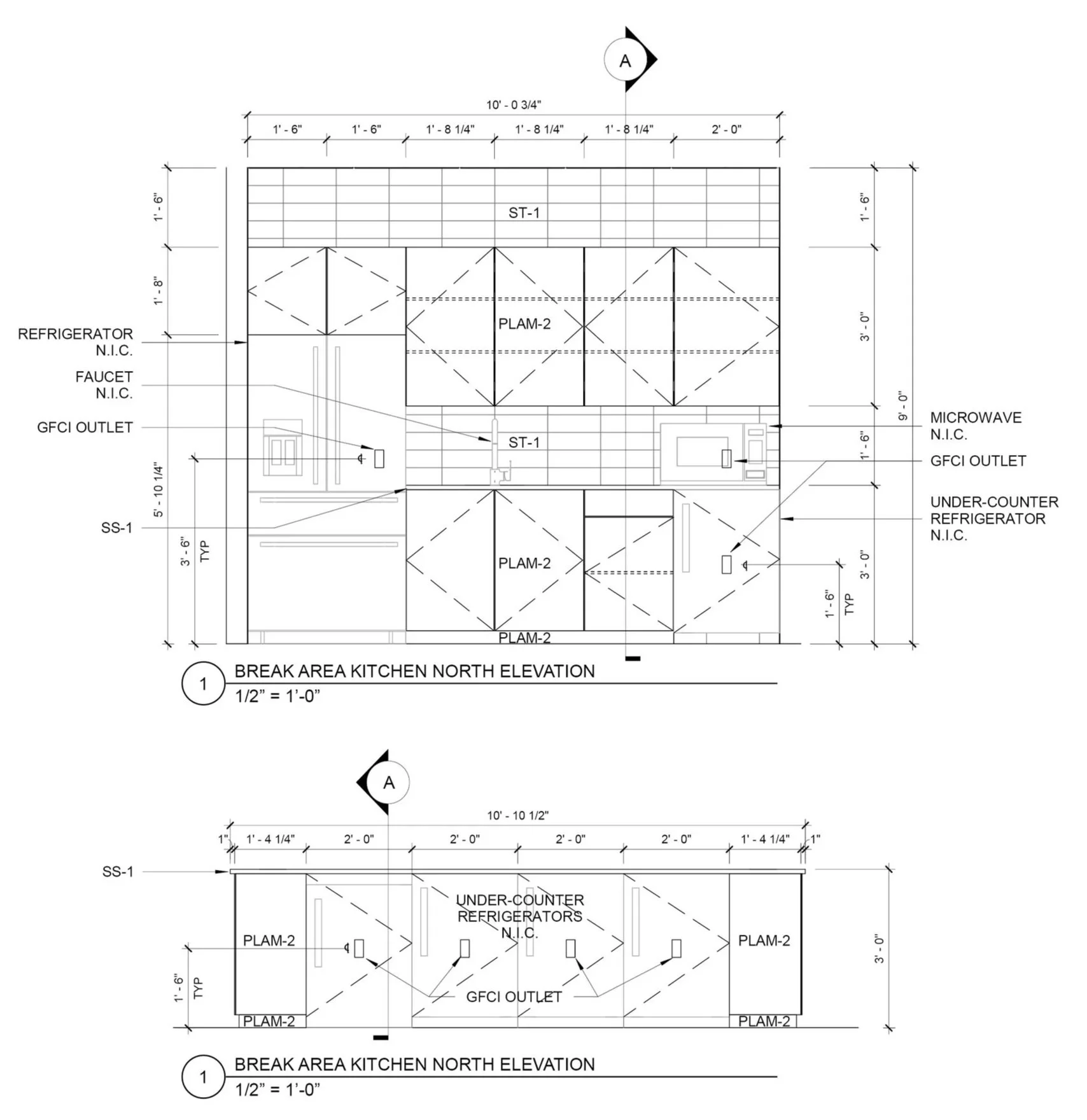

Architectural blueprint of kitchen layout with labeled appliances including refrigerator, faucet, microwave, and under-counter refrigerators, along with pantry and shelving details.

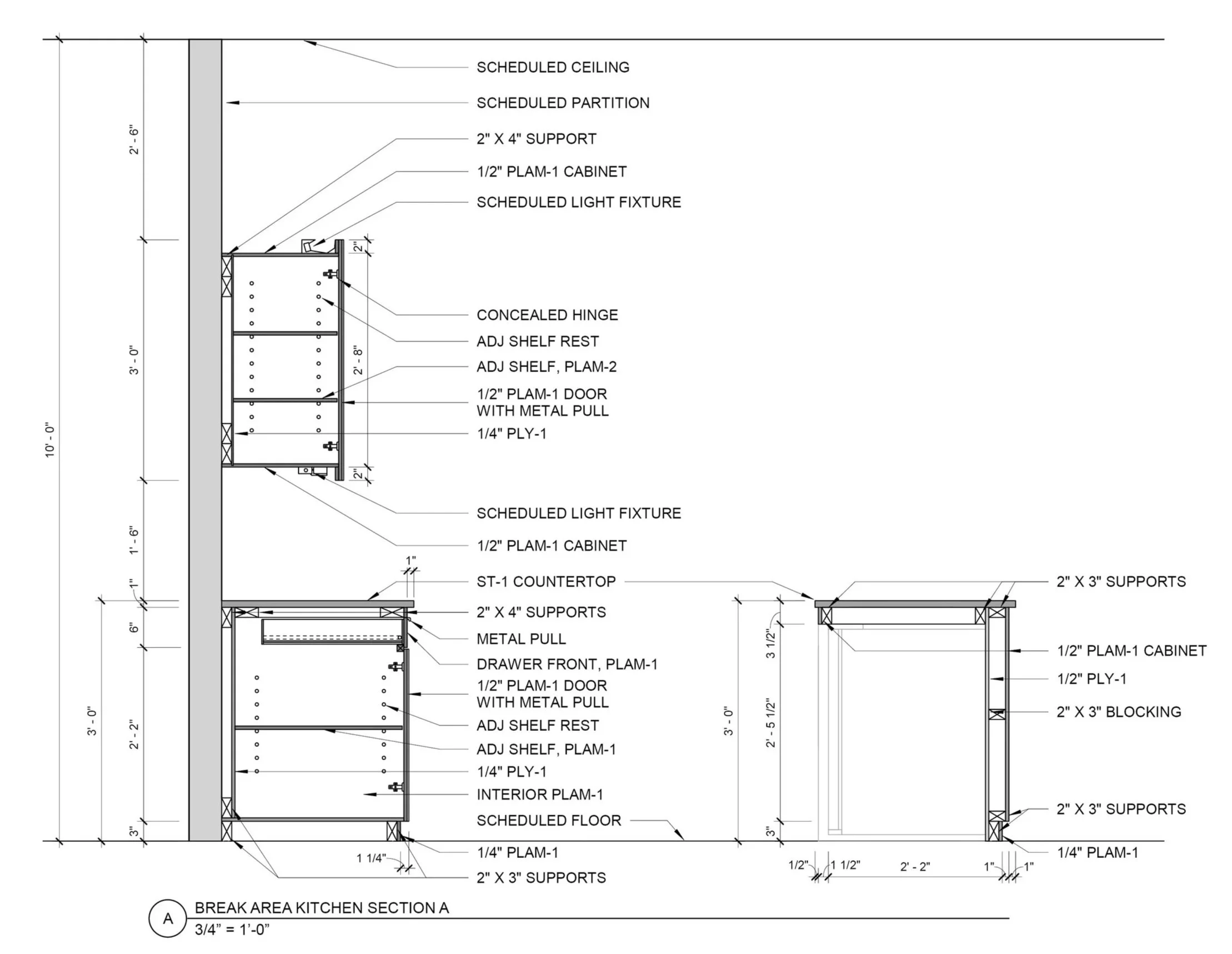

Detailed architectural blueprint of a kitchen section with labeled components such as ceiling, partition, supports, cabinets, light fixtures, counter, and framing measurements.

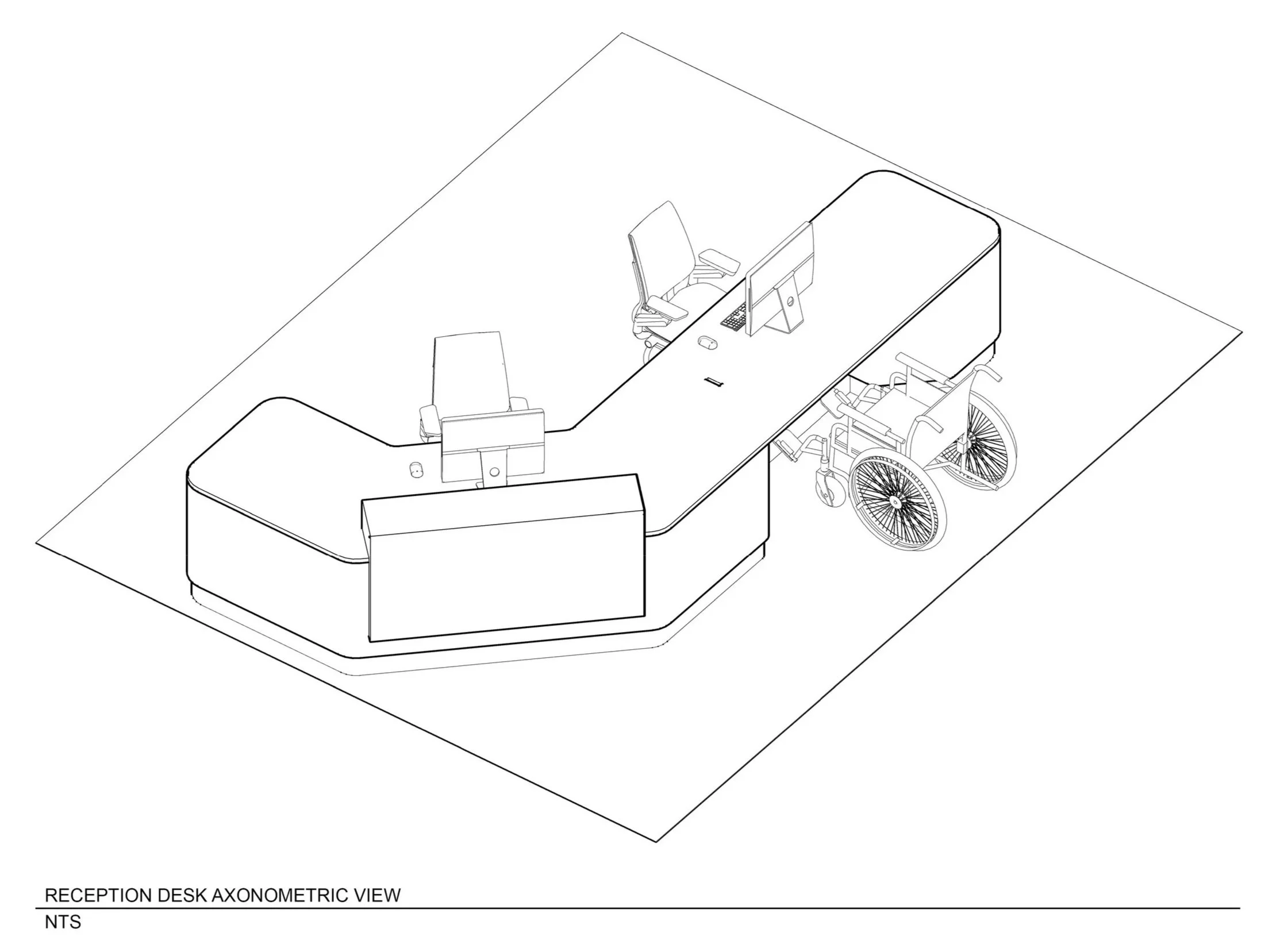

An axonometric view of a reception desk with chairs, computer, and wheelchair

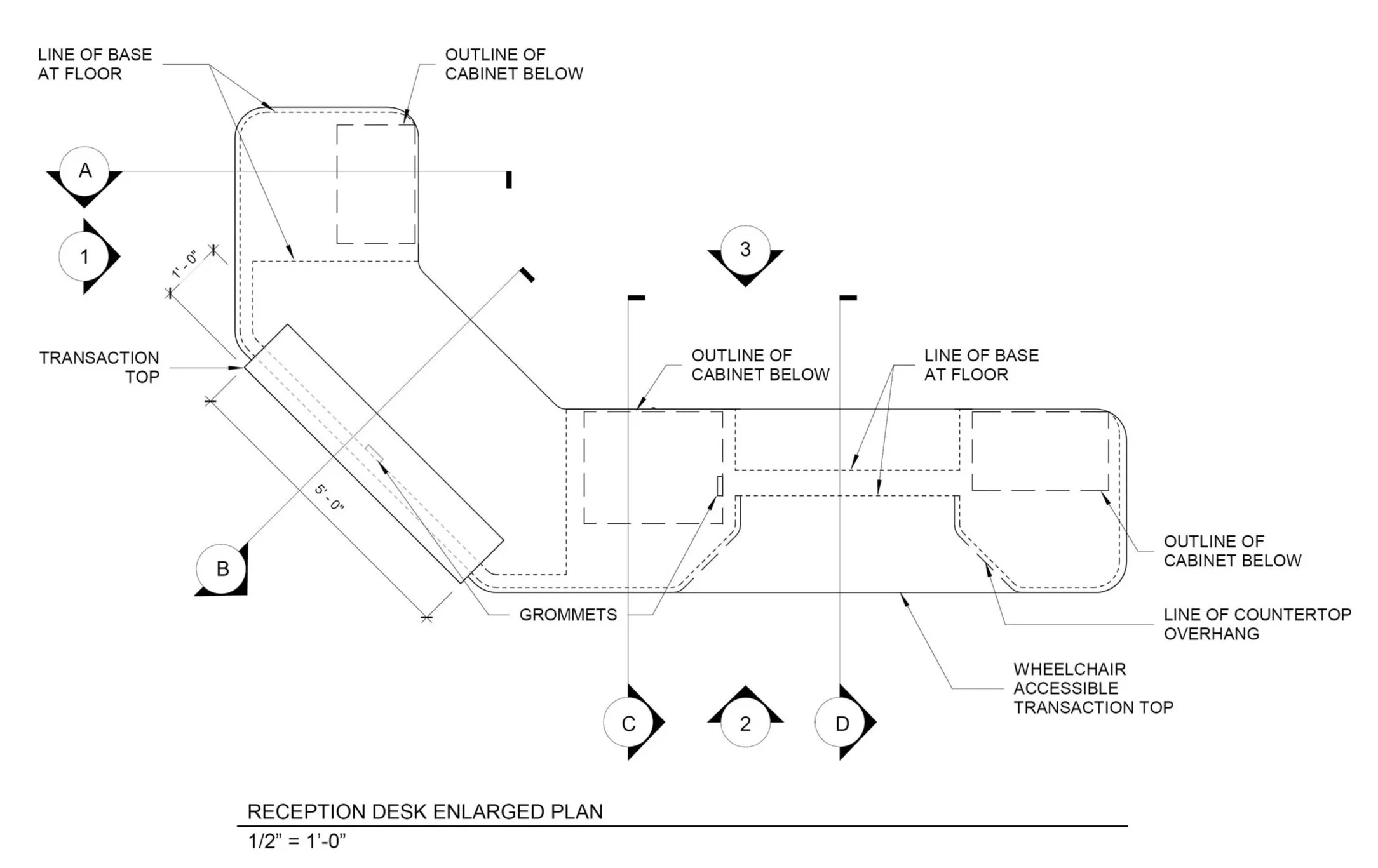

Architectural blueprint of a reception desk with detailed annotations of measurements and components.

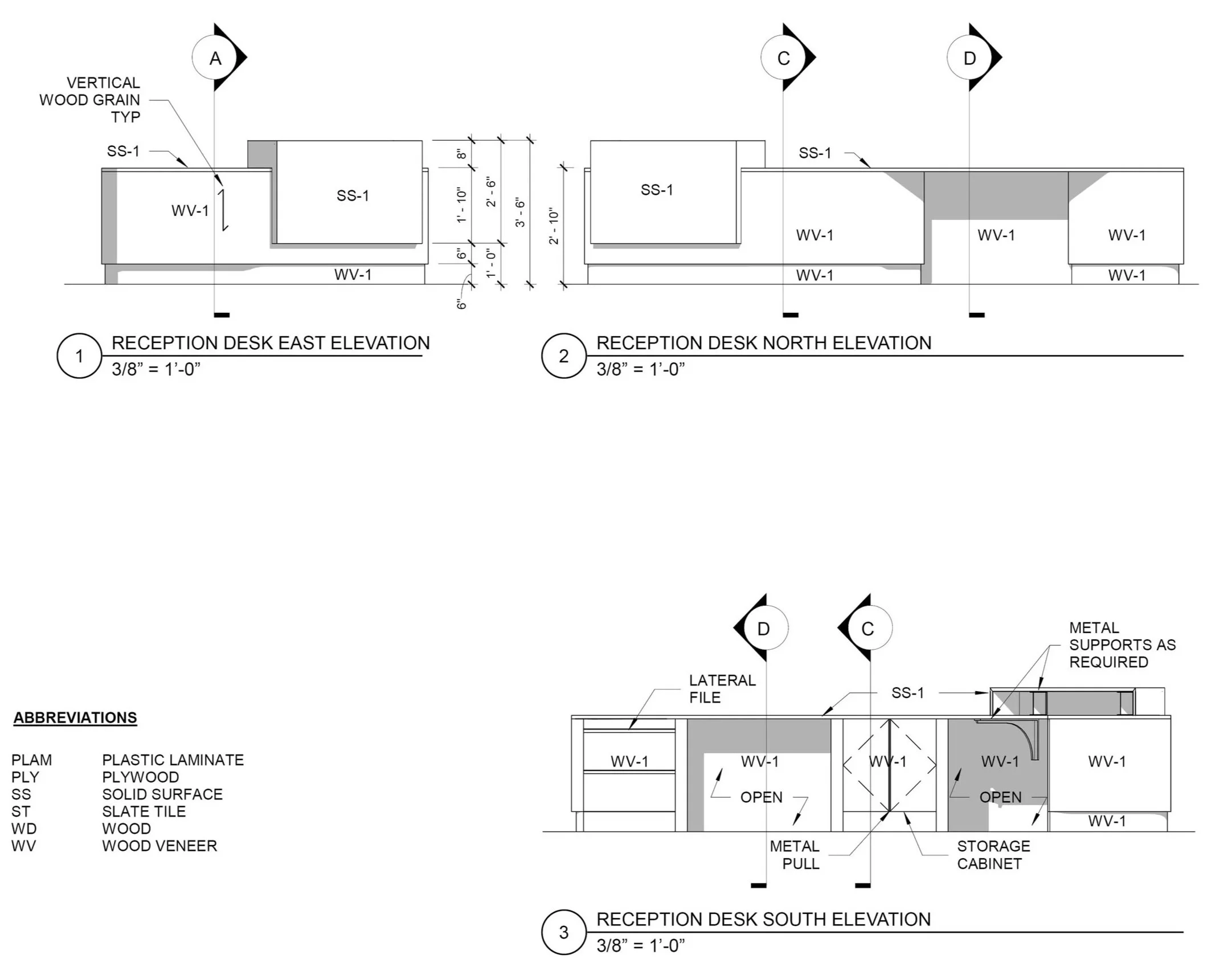

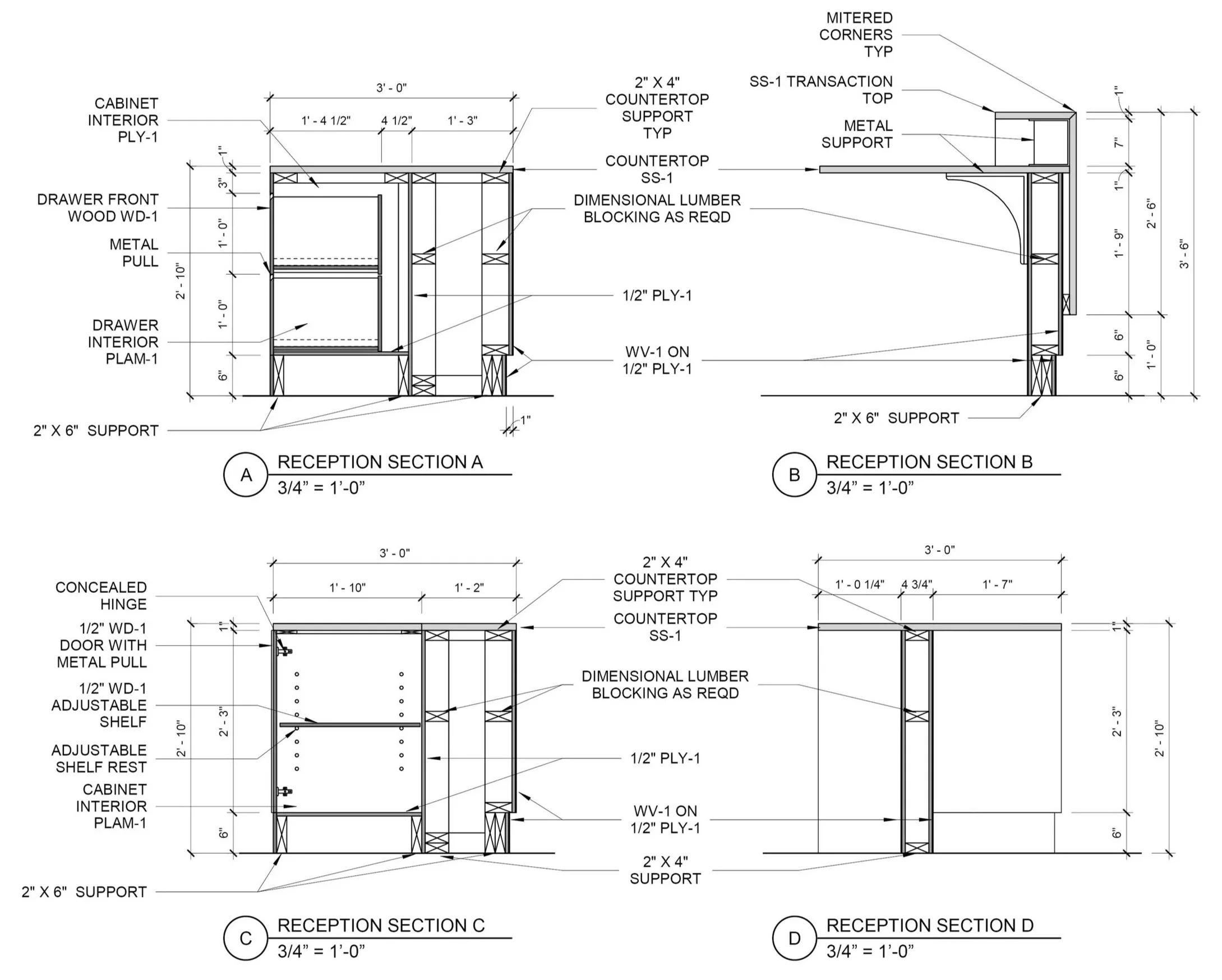

Technical architectural drawing of a reception desk design, showing multiple elevations and detailed measurements with labels and abbreviations.
Technical architectural blueprint for cabinetry and support structures, detailing measurements, materials, and construction specifications.

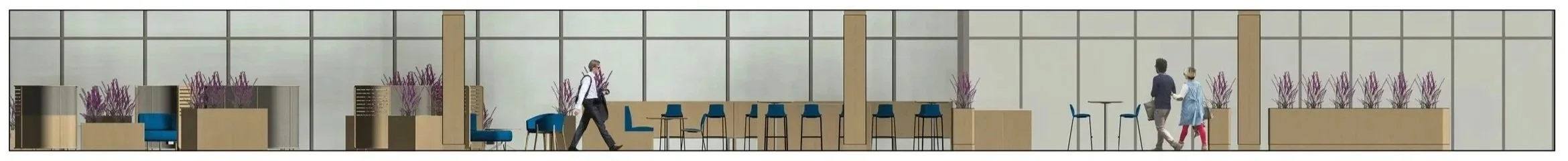

Three people walking past a brick wall. One man waits on the left, while a couple holding hands walk on the right.

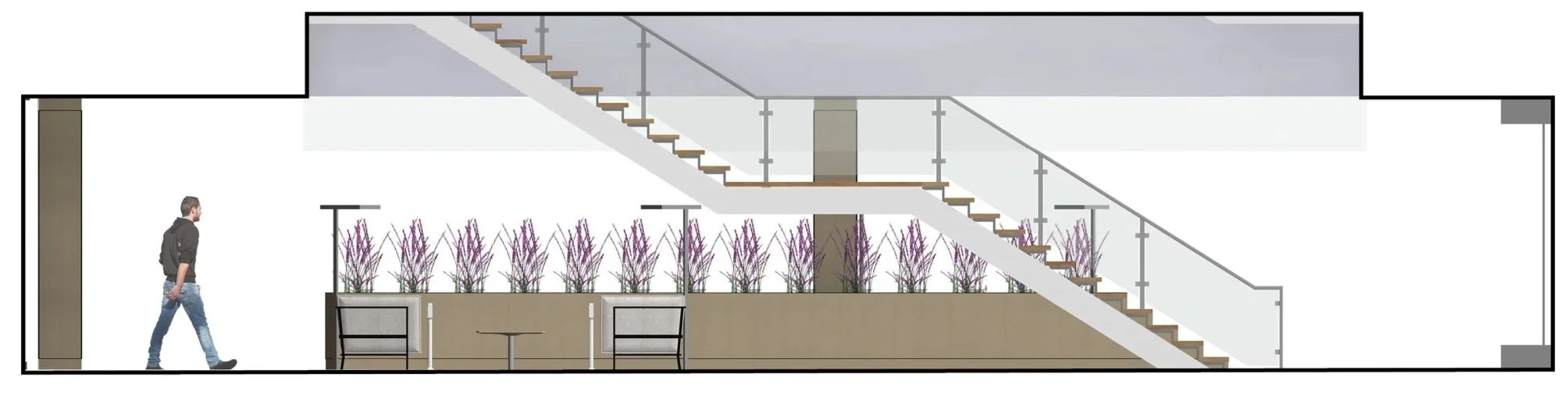

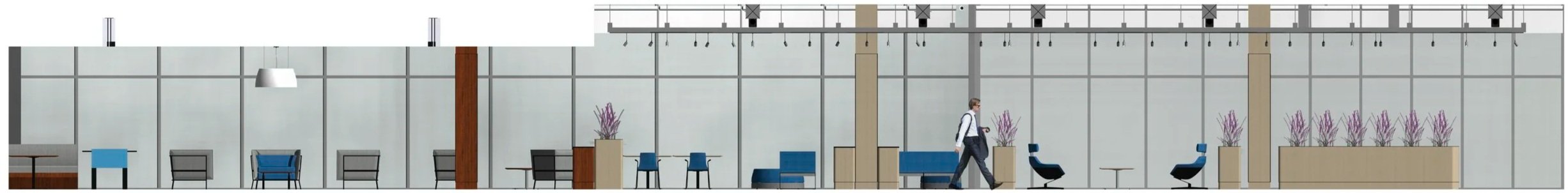

Side view of an interior space showing a man walking on the left, with stairs and glass railing in the background, and a row of purple flowering plants along the middle.

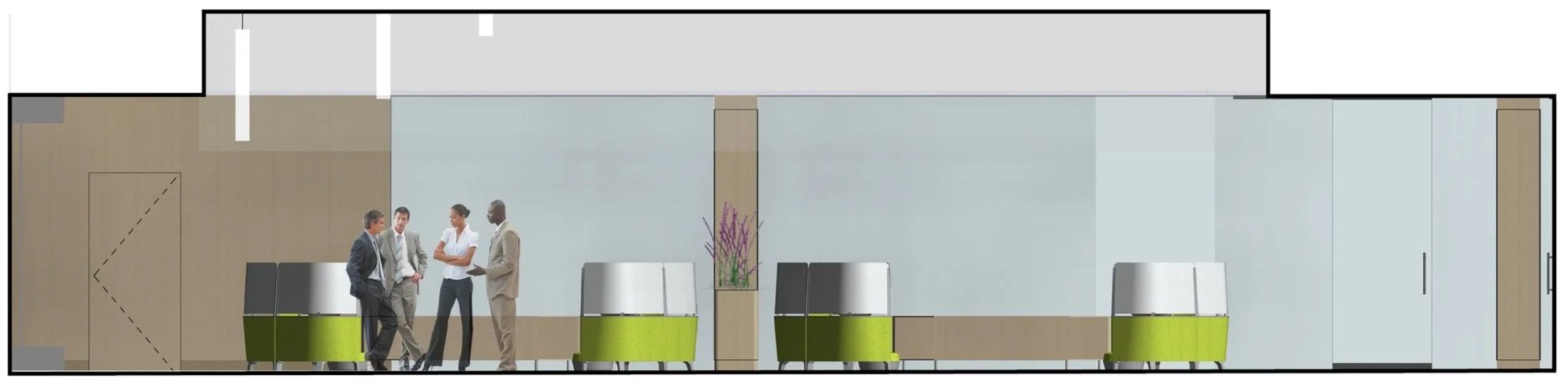

Interior view of a modern building lobby with four green and gray seating areas, tall light fixtures, a flower arrangement, and four business people conversing.

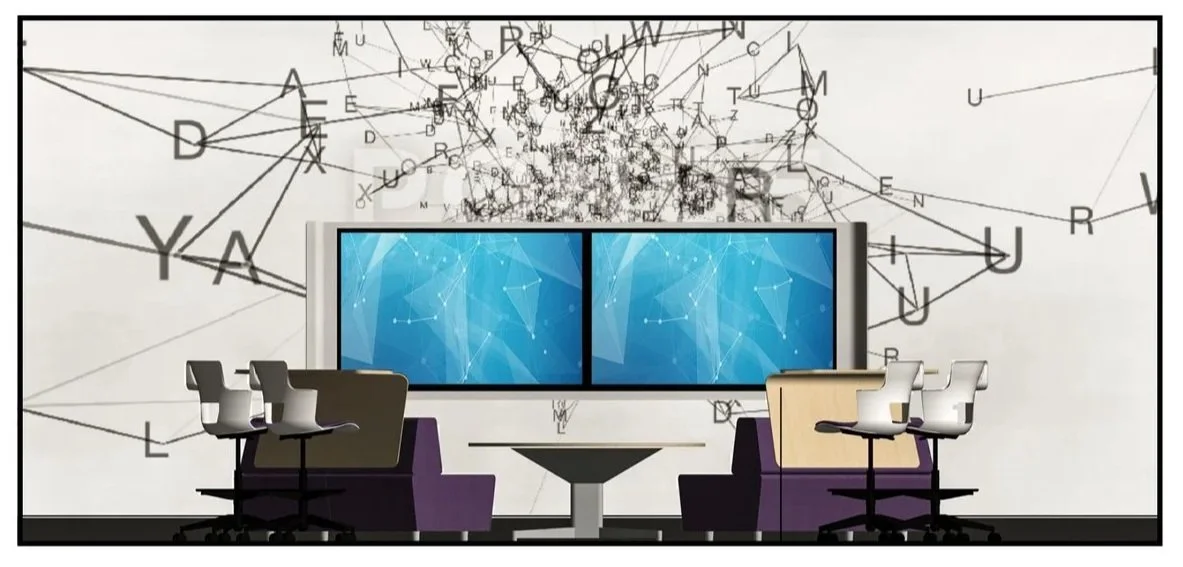

A modern conference room with two large monitors on a white wall, surrounded by two chairs each with a desk, a small table in the center, and a background with interconnected lines and scattered letters.
Office interior with glass walls, meeting area, and desks with purple plants, two men and a woman talking.

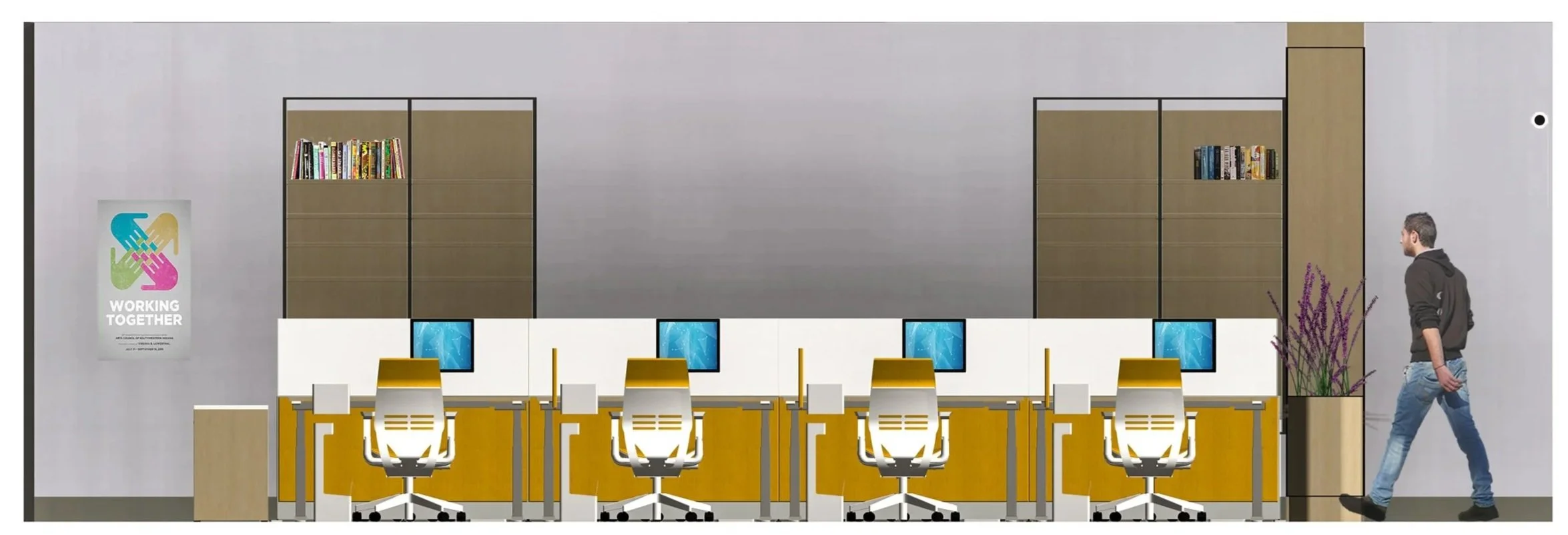

Modern office reception area with four white and yellow chairs, four computer monitors on the white desks, a wall with built-in shelves, a poster on the wall with interconnected colorful hands and the text 'Working Together,' and a man walking past purple plants.

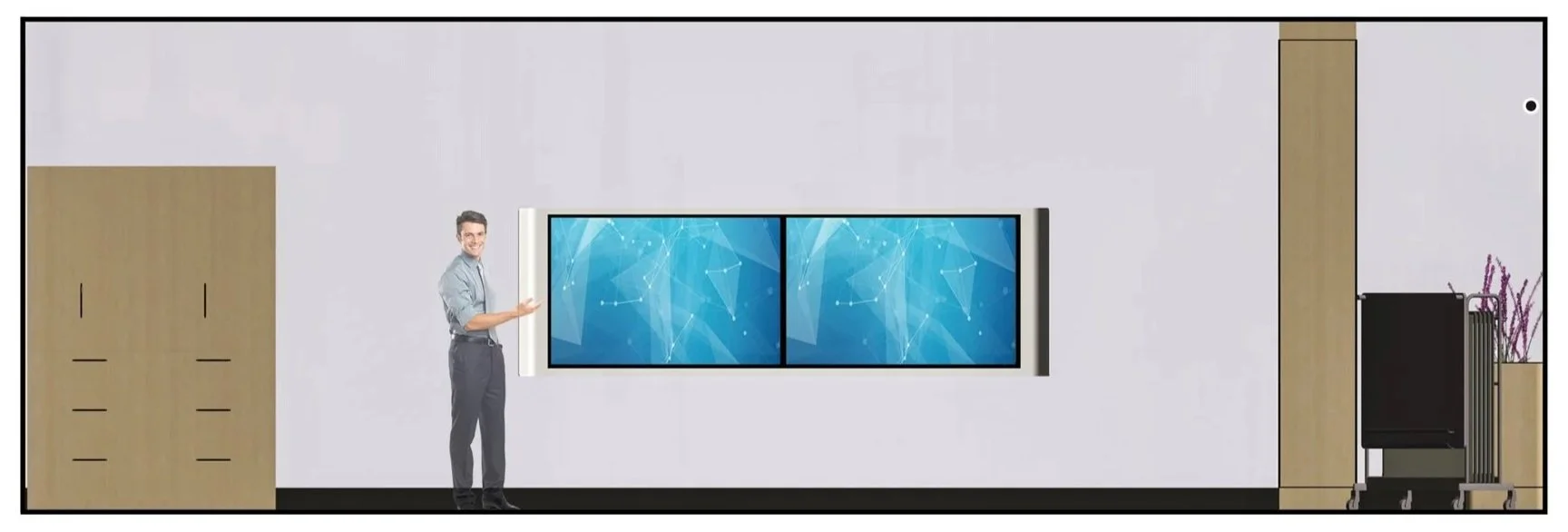

A man standing in front of a wall-mounted dual-screen display with a blue digital network background, in a modern room with wood and storage cabinets.

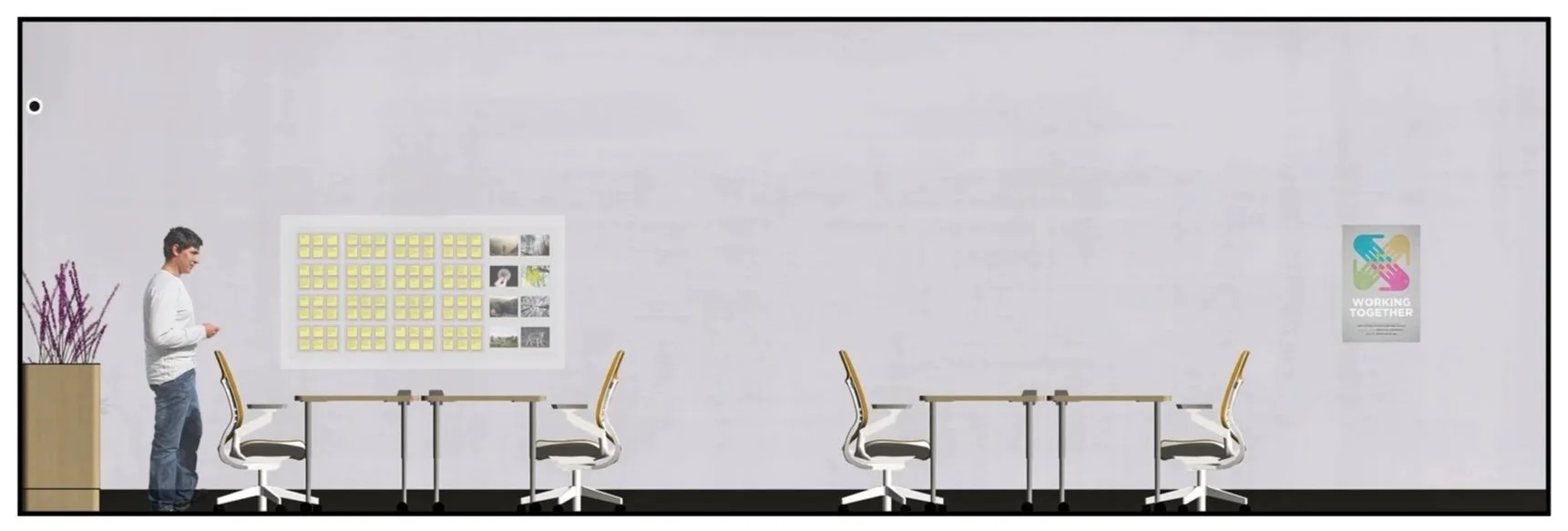

Empty modern office room with a person standing near a wall, four office chairs, two tables, a poster on the wall, and a plant in a pot.

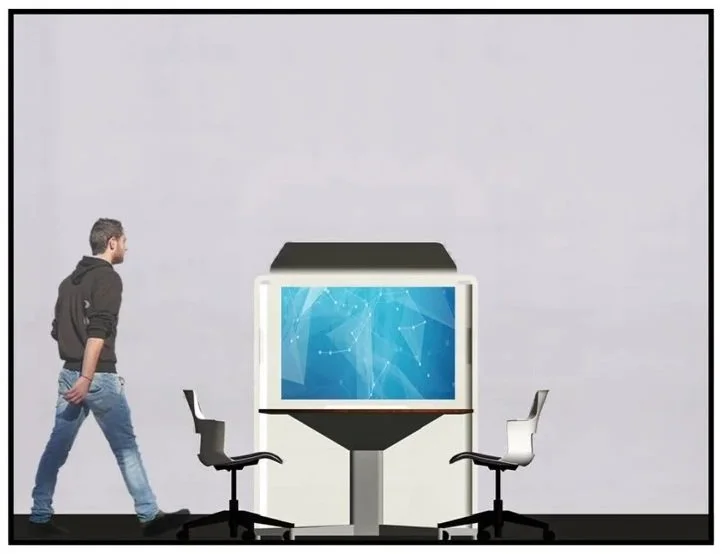

A man walks past a booth in an indoor space with a large monitor screen on a stand between two chairs.
A plain white room with a single black chair and a digital projector mounted on the ceiling.

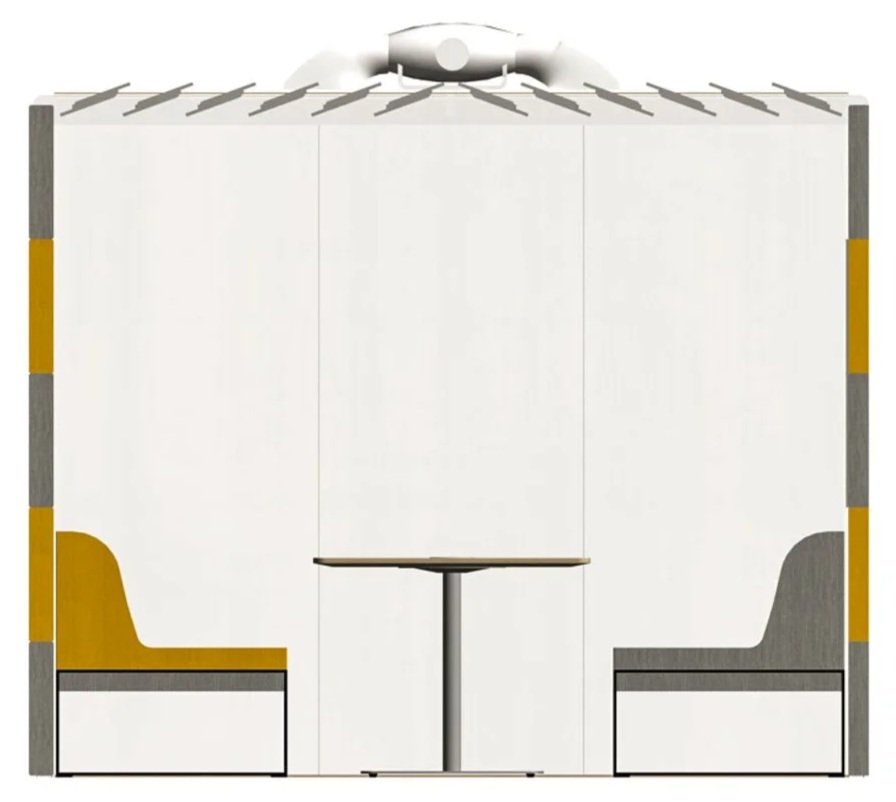

Modern outdoor beer garden booth with seating, a small table, and a large umbrella overhead.

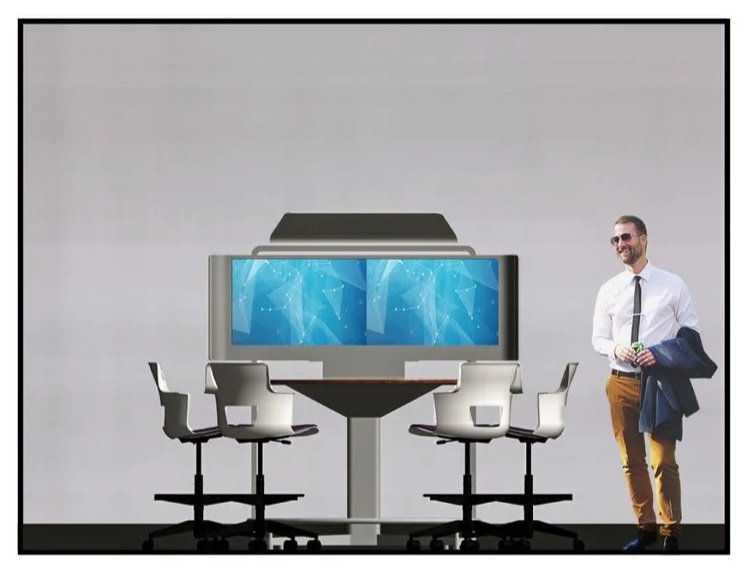

A modern conference room with a large digital display screen, four white office chairs around a dark wood table, and a man in business attire standing to the right, holding a jacket and wearing sunglasses.

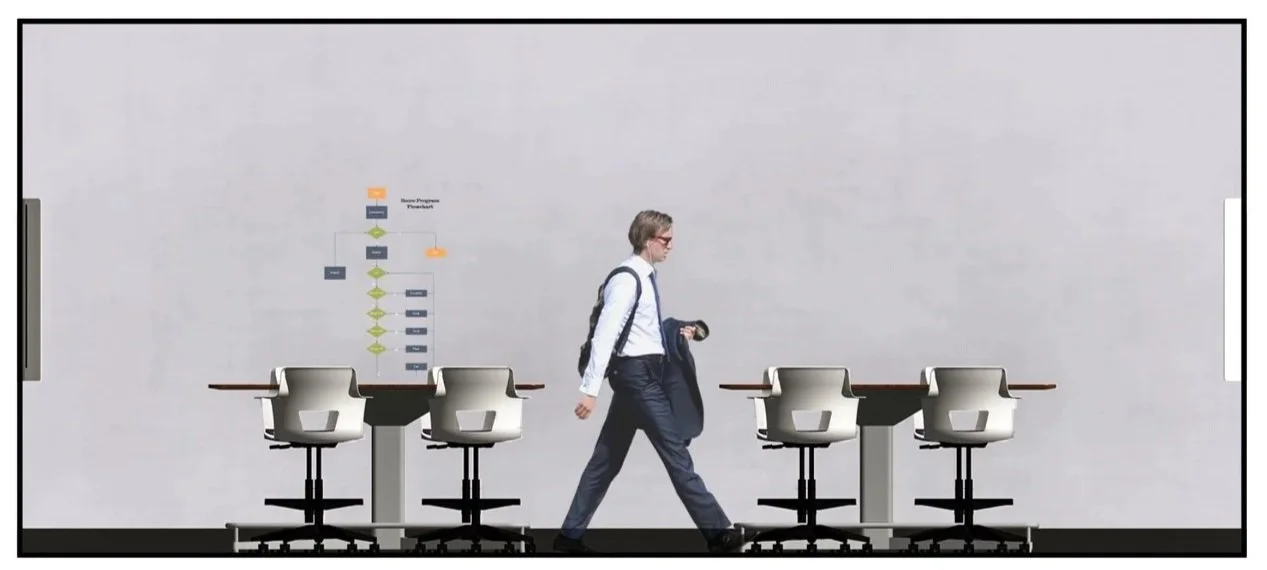

A man in business attire with a backpack and a jacket over his arm walking through a modern office conference room with empty chairs and a flowchart on the wall.

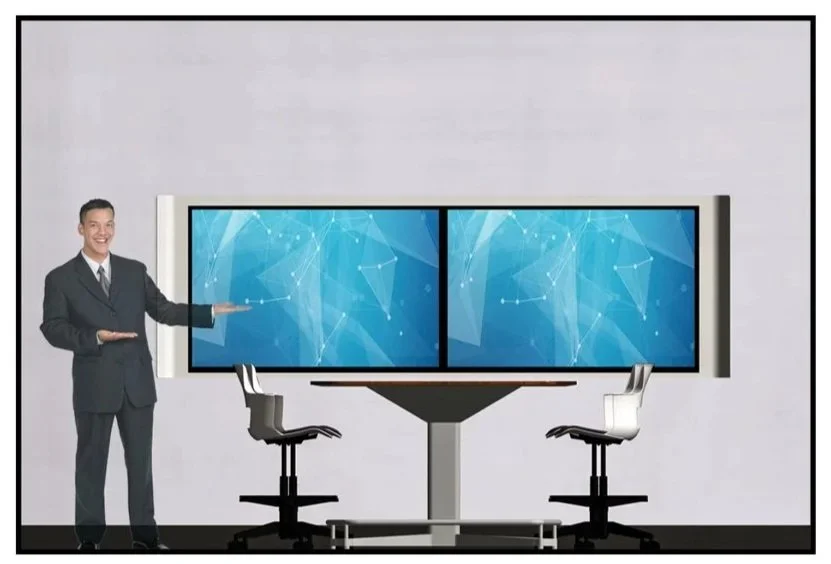

A man in a suit gesturing towards a large dual-screen display in a corporate or conference room setting.
Conference room with six office chairs around a table, two large monitors on the wall displaying a blue digital network graphic, and a man standing next to a tall potted plant with purple flowers.

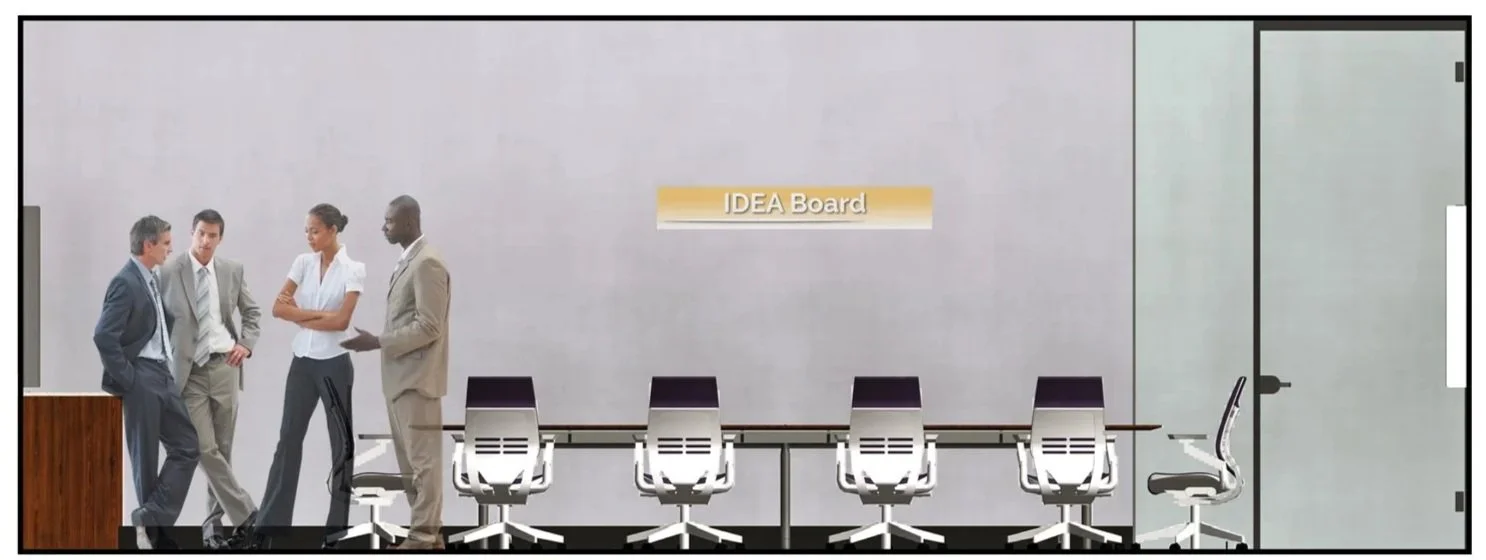

Four diverse business professionals standing and talking in a conference room with a row of empty chairs and a sign that reads 'IDEA Board' on the wall.

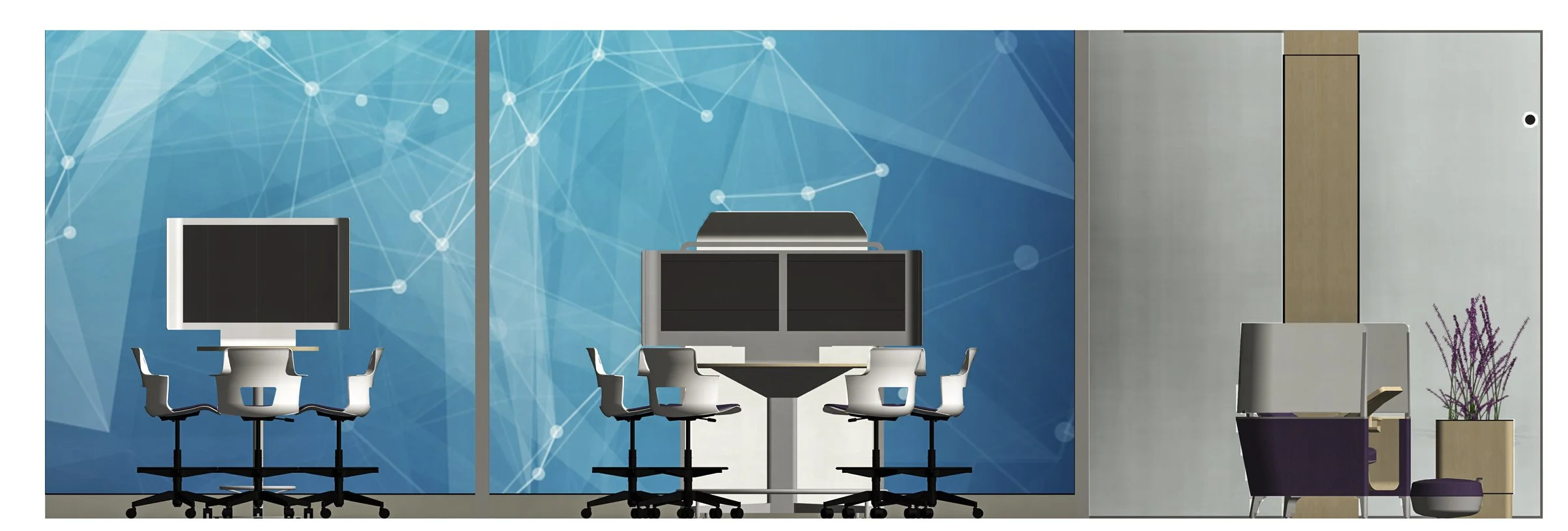

Modern office conference room with blue geometric-patterned wall and large screens, white chairs with black accents, and purple and beige seating area with potted plant.

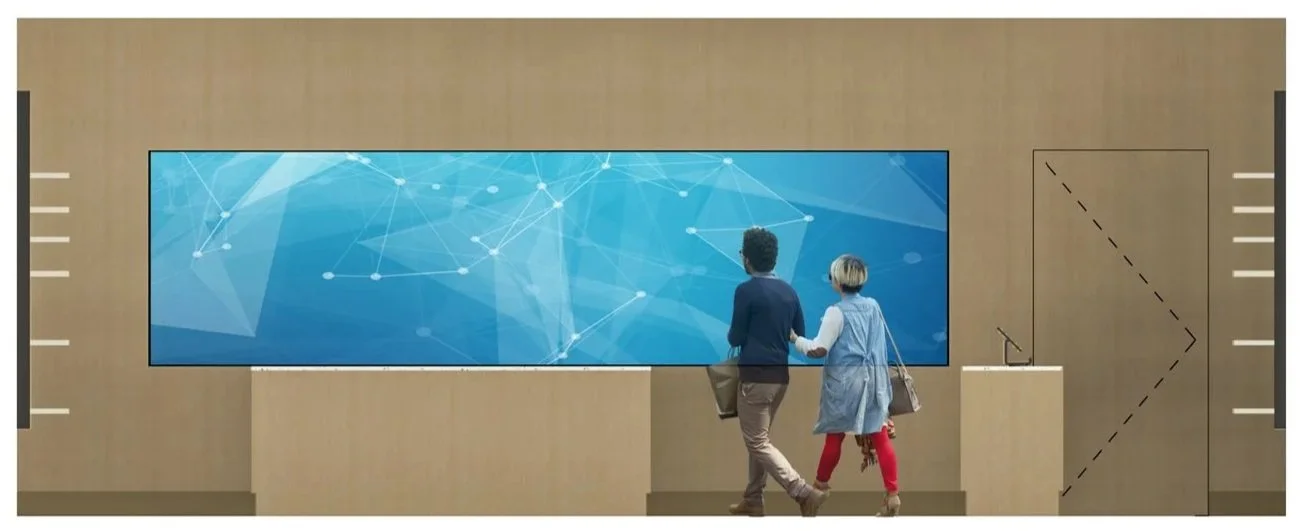

Two people, a man and a woman, walk hand in hand past an interactive digital display in a modern indoor environment.

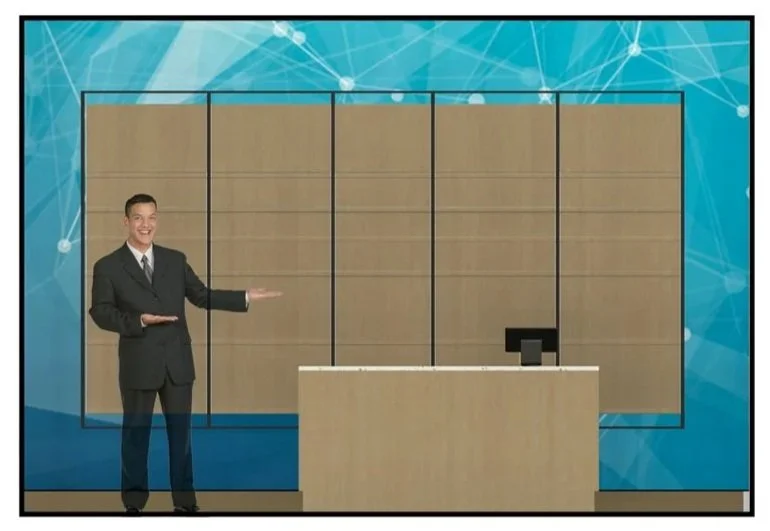

A man in a suit standing next to a large empty presentation screen with a wooden background, in a conference room or studio setting.

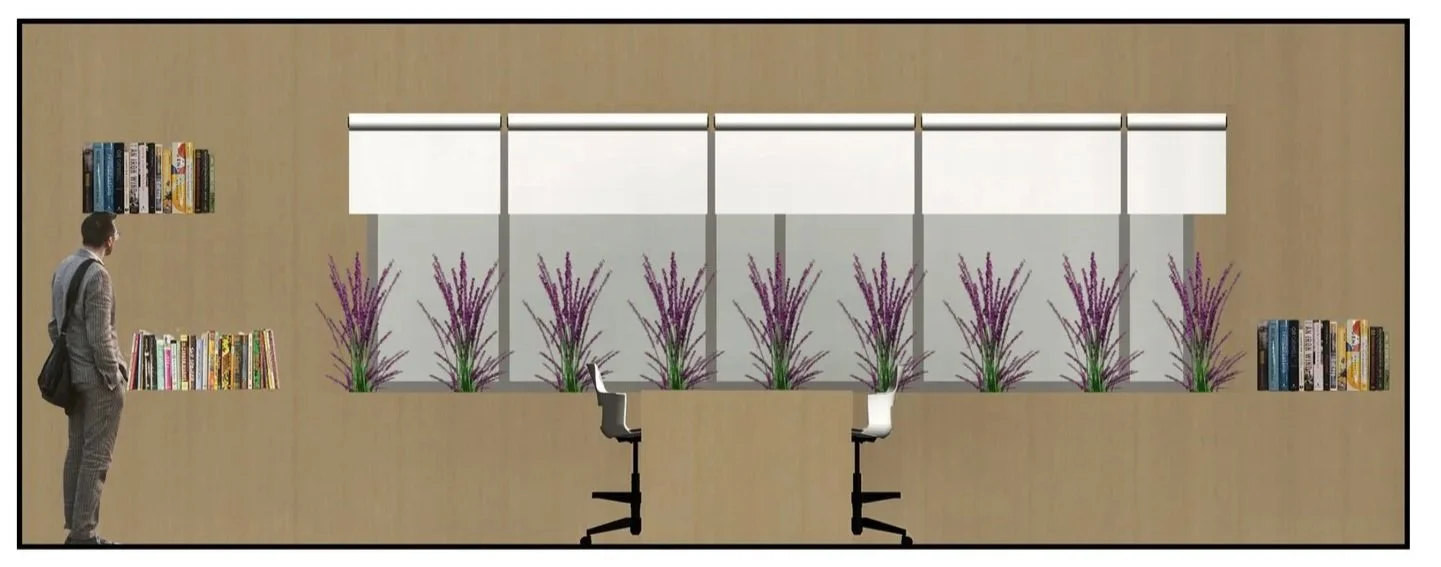

A person standing in front of a modern office interior with bookshelves and plants, and a glass partition with flowers, two chairs, and a window.

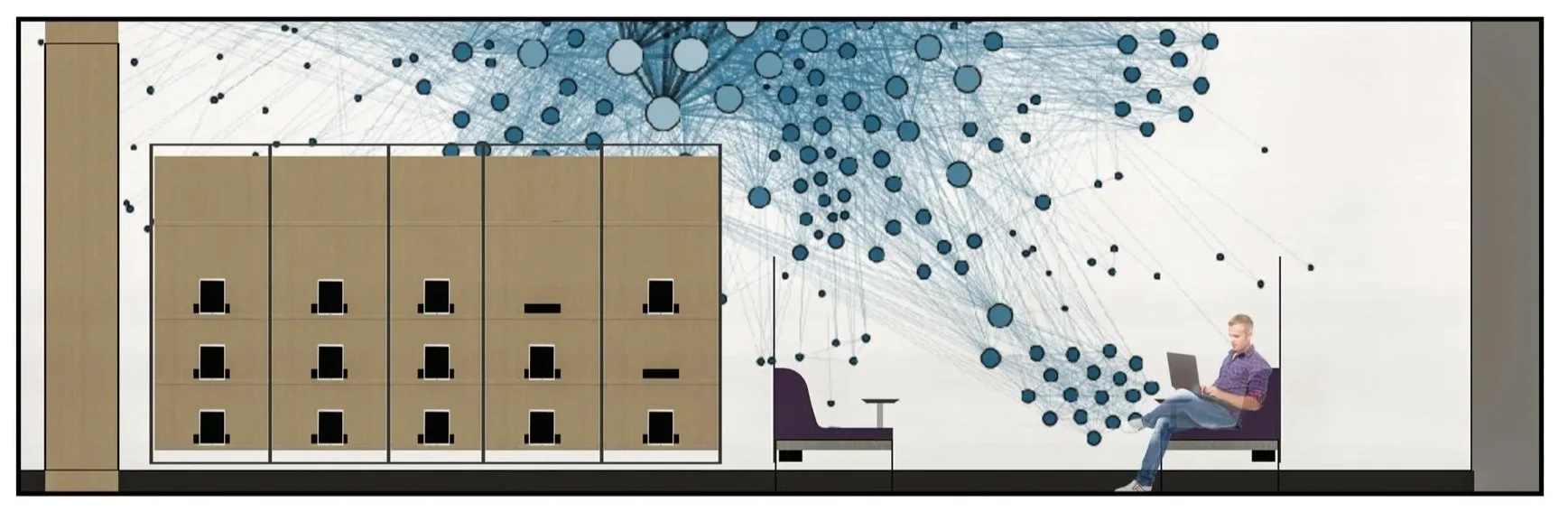

A digital illustration of a person sitting on a bench using a laptop, with a representation of data visualization such as nodes and connections above and around them, resembling a digital or network environment.

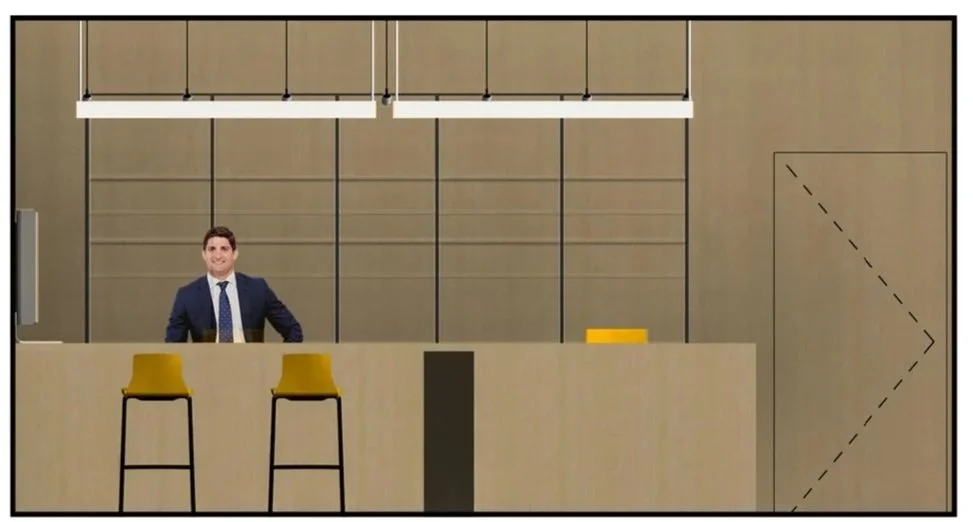

A man in a suit sitting behind a modern bar with two yellow barstools, in a minimalist interior with wood-paneled walls and overhead lighting.

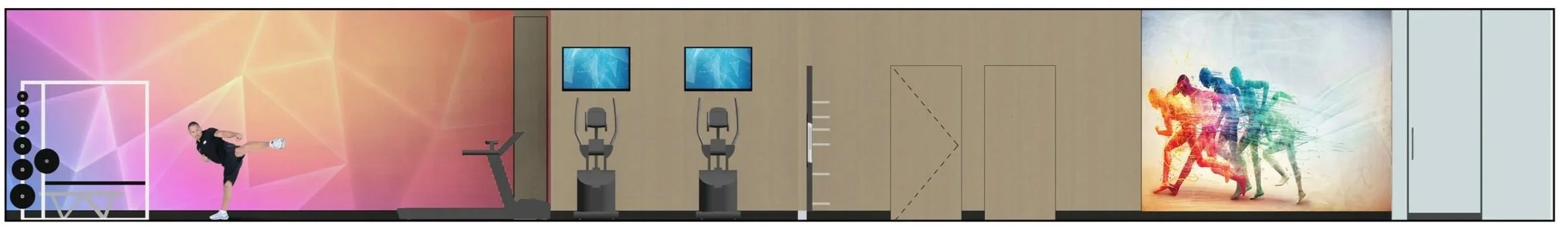

A digital rendering of an indoor gym or fitness center, featuring a colorful geometric wall, exercise equipment, two computer monitors, mats, and a group of colorful dancers or athletes in motion on a large screen at the far right.

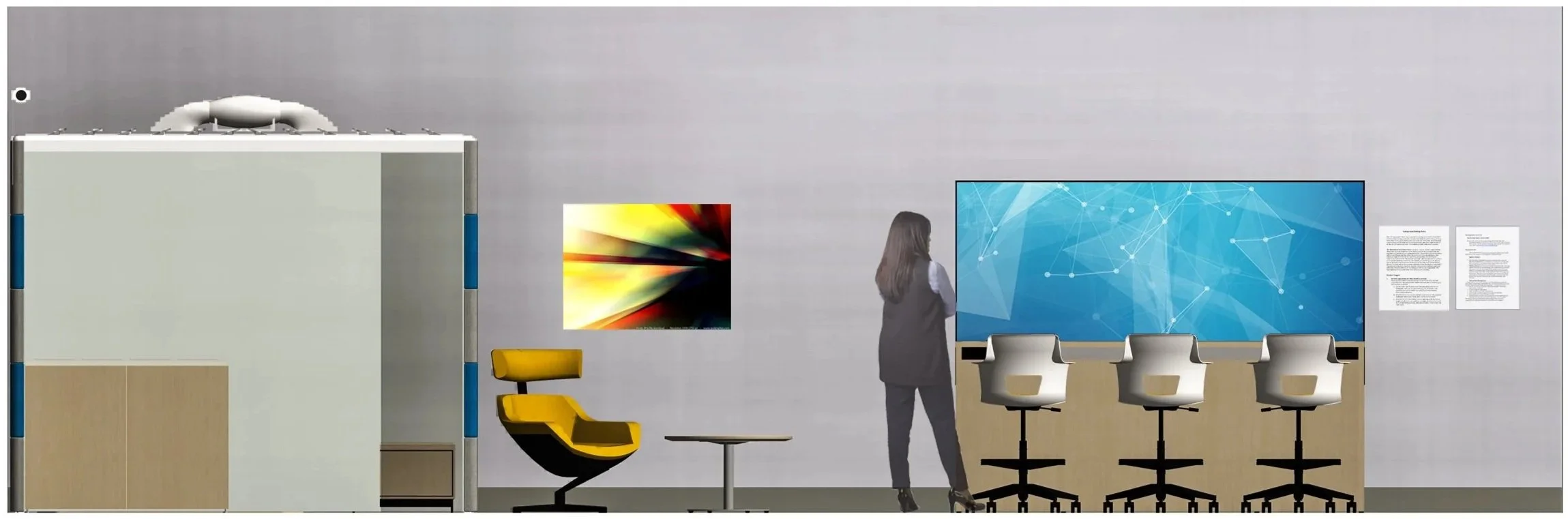

Modern work or conference space with a large digital display, a woman standing and looking at it, abstract artwork on the wall, and a row of chairs for meetings.

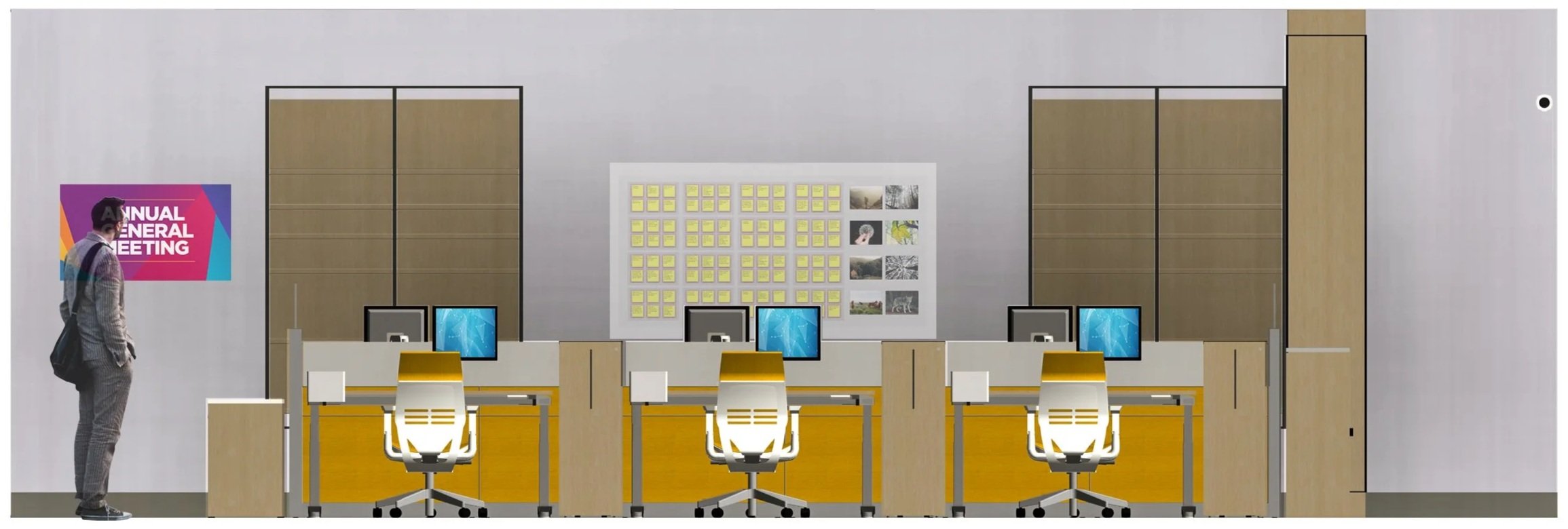

Office reception area with four cubicles, each with a computer and white chair, a wall with yellow sticky notes and photographs, and a man in business attire standing on the left side. A sign reads 'Annual General Meeting' on the left wall.
Architectural rendering of a modern indoor waiting area or lounge with large glass windows, seating, potted plants, and a person walking through.

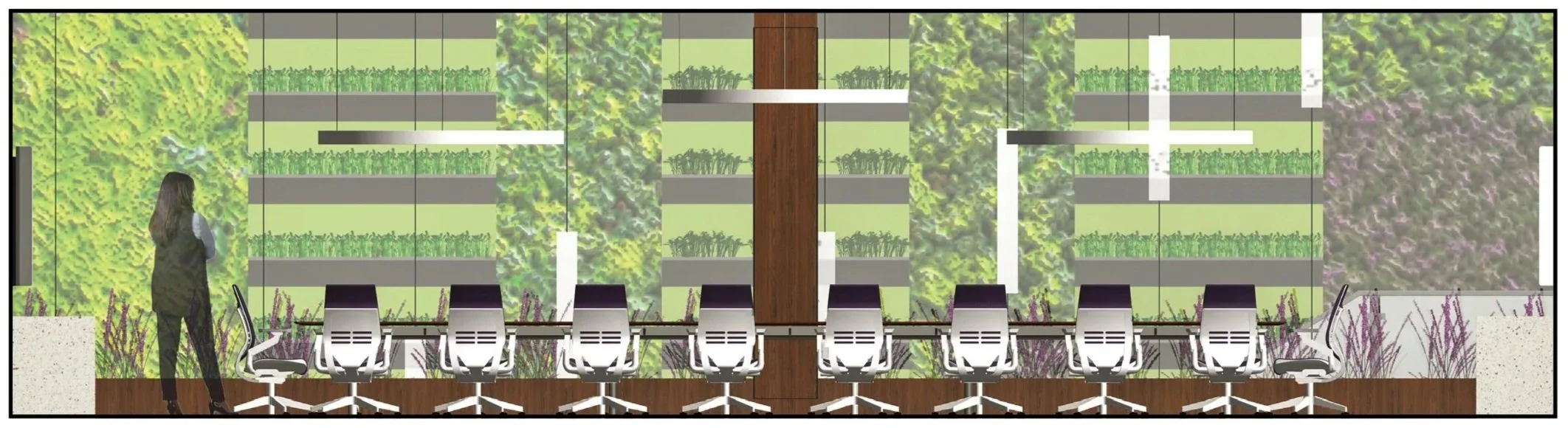

Interior view of a modern conference room or meeting space with a long table surrounded by white ergonomic chairs with black cushions, large windows with a view of green lush trees, plants along the window sill, a woman standing near the window, and a wooden support beam in the middle of the room.

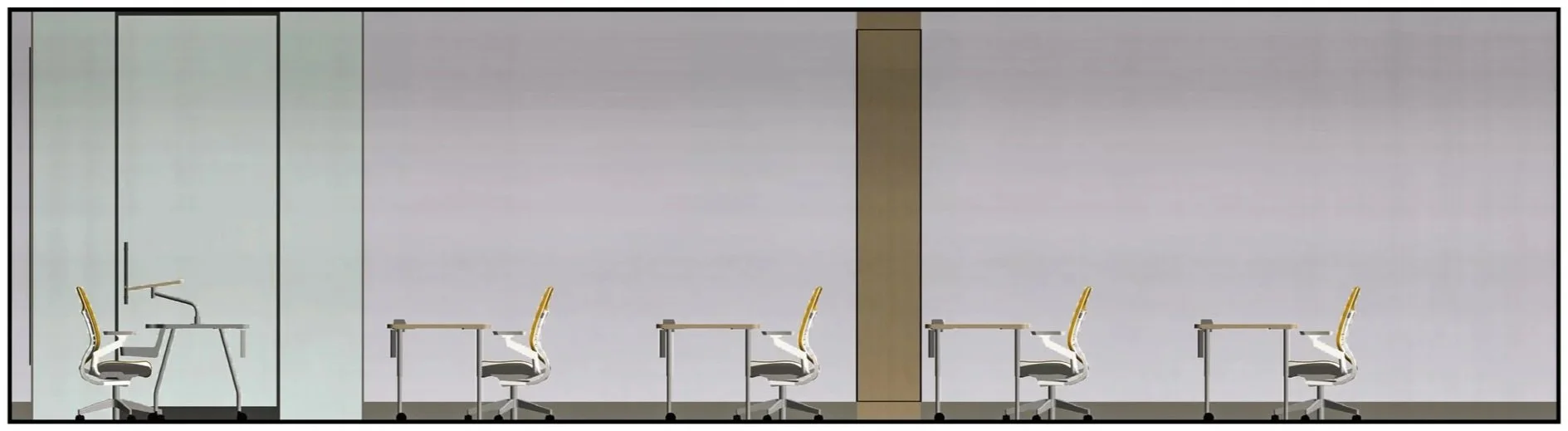

An empty office space with four desks and chairs, separated by glass walls and a wooden pillar in the middle.

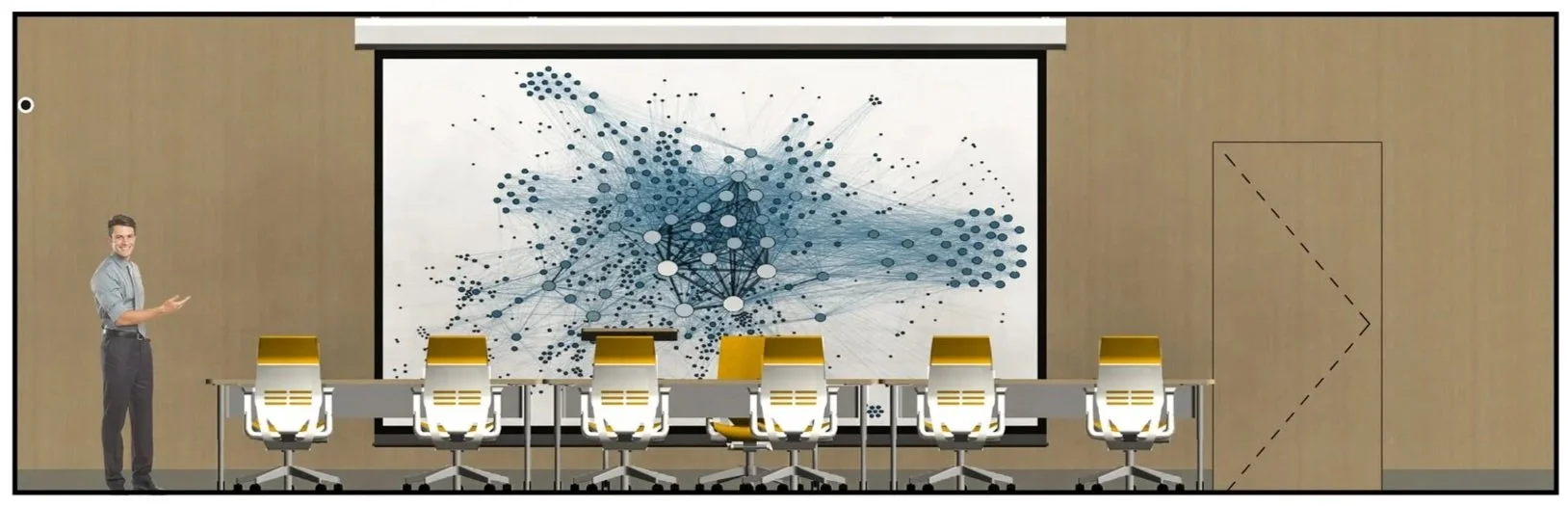

A conference room with a man giving a presentation. There is a large projection screen displaying a network graph with interconnected nodes. Seven chairs are arranged at a long table, and a door is on the right side of the room.
Interior of an airport with seating, tables, and large windows, with three groups of people walking.

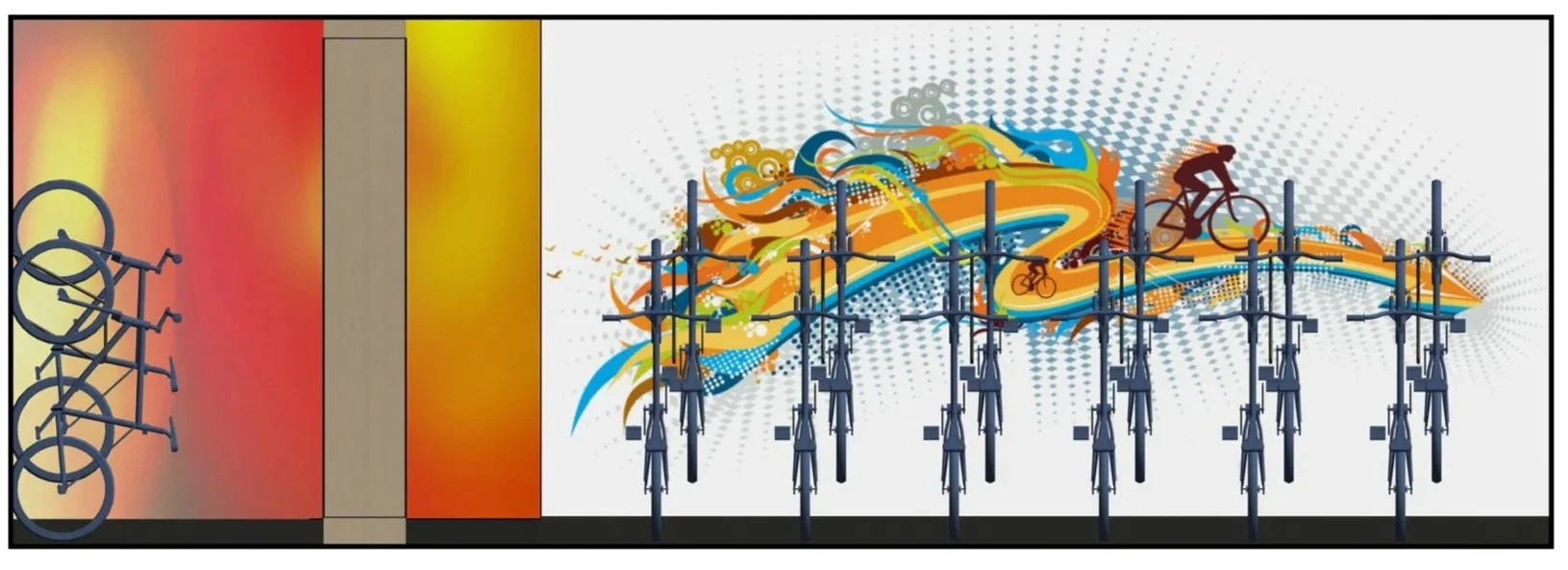

A technical diagram illustrating the installation process of a bicycle rack on a wall. Shows three stages: initial stack of bicycles, a heat map indicating temperature, and vibrant artwork with silhouettes of cyclists and abstract swirls.
